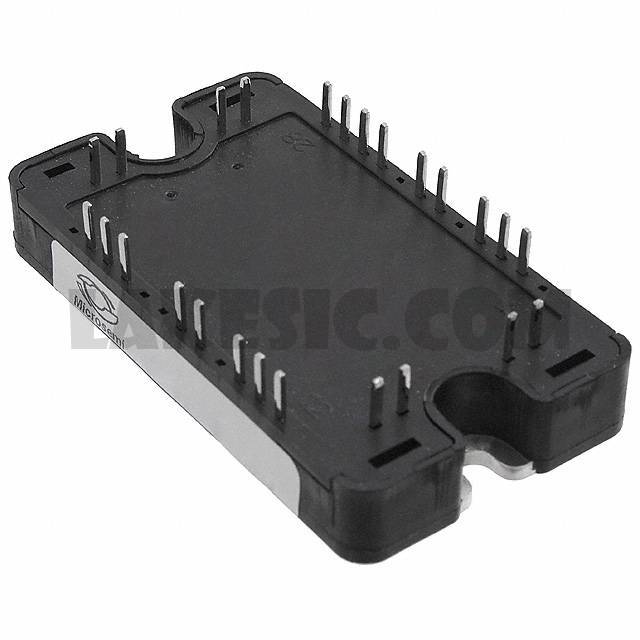

APTGT50H60T3G

APTGT50H60T3G

Part NumberAPTGT50H60T3G

ManufacturerMicrosemi Corporation

DescriptionPOWER MOD IGBT3 FULL BRIDGE SP3

DatasheetAPTGT50H60T3G

Package / CaseSP3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Full Bridge Inverter 600V 80A 176W Chassis Mount SP3

To learn about the specification of APTGT50H60T3G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT50H60T3G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT50H60T3G.
We are offering APTGT50H60T3G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT50H60T3G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Modules
Datasheet	APTGT50H60T3G
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Part Status	Active
IGBT Type	Trench Field Stop
Configuration	Full Bridge Inverter
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	80A
Power - Max	176W
Vce(on) (Max) @ Vge, Ic	1.9V @ 15V, 50A
Current - Collector Cutoff (Max)	250µA
Input Capacitance (Cies) @ Vce	3.15nF @ 25V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SP3
Supplier Device Package	SP3
