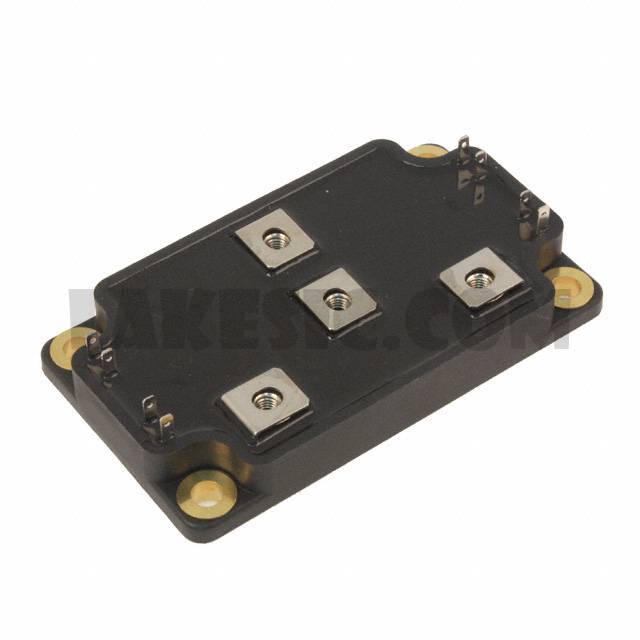

APTGT200TL60G

APTGT200TL60G

Part NumberAPTGT200TL60G

ManufacturerMicrosemi Corporation

DescriptionPOWER MODULE IGBT 600V 200A SP6

DatasheetAPTGT200TL60G

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Three Level Inverter 600V 300A 652W Chassis Mount SP6

To learn about the specification of APTGT200TL60G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT200TL60G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT200TL60G.
We are offering APTGT200TL60G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT200TL60G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Modules
Datasheet	APTGT200TL60G
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Part Status	Active
IGBT Type	Trench Field Stop
Configuration	Three Level Inverter
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	300A
Power - Max	652W
Vce(on) (Max) @ Vge, Ic	1.9V @ 15V, 200A
Current - Collector Cutoff (Max)	350µA
Input Capacitance (Cies) @ Vce	12.2nF @ 25V
Input	Standard
NTC Thermistor	No
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SP6
Supplier Device Package	SP6

APTGT200TL60G - Related Products

	APTGT200TL60G	Microsemi Corporation, IGBT Module Trench Field Stop Three Level Inverter 600V 300A 652W Chassis Mount SP6,	View
	APTGT75TL60T3G	Microsemi Corporation, IGBT Module Trench Field Stop Three Level Inverter 600V 100A 250W Chassis Mount SP3,	View
	APTGT50TL601G	Microsemi Corporation, IGBT Module Trench Field Stop Three Level Inverter 600V 80A 176W Chassis Mount SP1,	View
