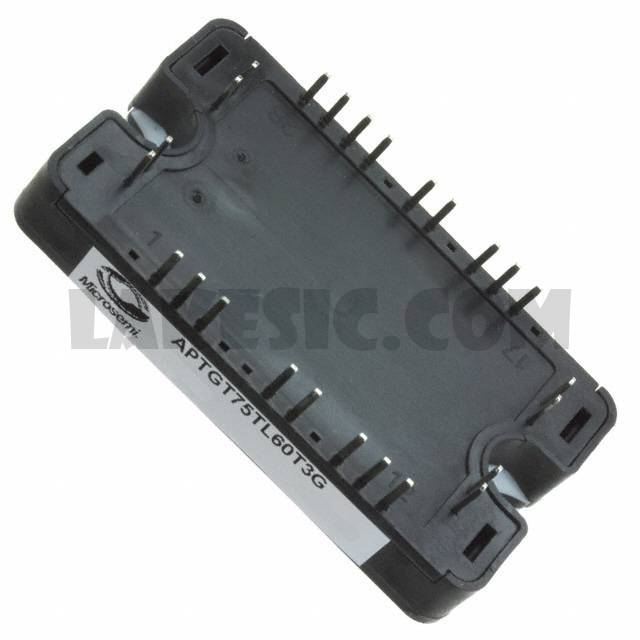

APTGT75TL60T3G

APTGT75TL60T3G

Part NumberAPTGT75TL60T3G

ManufacturerMicrosemi Corporation

DescriptionPOWER MODULE IGBT 600V 75A SP3

DatasheetAPTGT75TL60T3G

Package / CaseSP3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Three Level Inverter 600V 100A 250W Chassis Mount SP3

To learn about the specification of APTGT75TL60T3G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT75TL60T3G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT75TL60T3G.
We are offering APTGT75TL60T3G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT75TL60T3G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Modules
Datasheet	APTGT75TL60T3G
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Part Status	Active
IGBT Type	Trench Field Stop
Configuration	Three Level Inverter
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	100A
Power - Max	250W
Vce(on) (Max) @ Vge, Ic	1.9V @ 15V, 75A
Current - Collector Cutoff (Max)	250µA
Input Capacitance (Cies) @ Vce	4.62nF @ 25V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SP3
Supplier Device Package	SP3

APTGT75TL60T3G - Related Products

	APTGT75TL60T3G	Microsemi Corporation, IGBT Module Trench Field Stop Three Level Inverter 600V 100A 250W Chassis Mount SP3,	View
	APTGT200TL60G	Microsemi Corporation, IGBT Module Trench Field Stop Three Level Inverter 600V 300A 652W Chassis Mount SP6,	View
	APTGT50TL601G	Microsemi Corporation, IGBT Module Trench Field Stop Three Level Inverter 600V 80A 176W Chassis Mount SP1,	View
