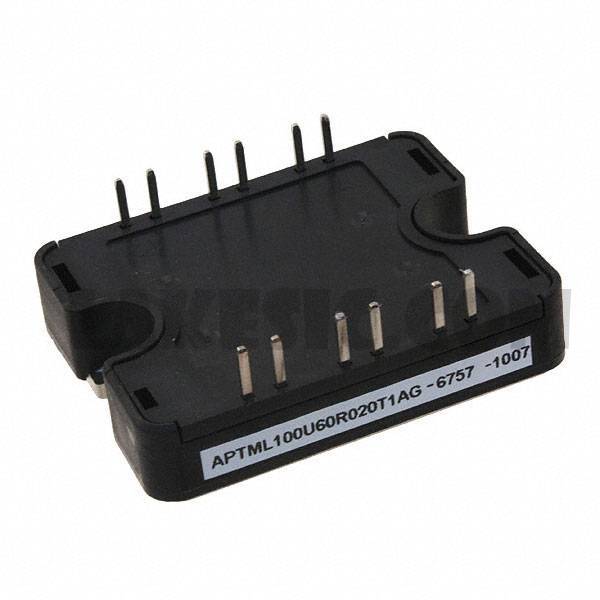

APTML100U60R020T1AG

APTML100U60R020T1AG

Part NumberAPTML100U60R020T1AG

ManufacturerMicrosemi Corporation

DescriptionMOSFET N-CH 1000V 20A SP1

DatasheetAPTML100U60R020T1AG

Package / CaseSP1

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 1000V 20A (Tc) 520W (Tc) Chassis Mount SP1

To learn about the specification of APTML100U60R020T1AG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTML100U60R020T1AG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTML100U60R020T1AG.
We are offering APTML100U60R020T1AG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTML100U60R020T1AG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	APTML100U60R020T1AG
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1000V
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	720mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	4V @ 2.5mA
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	6000pF @ 25V
FET Feature	-
Power Dissipation (Max)	520W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	SP1
Package / Case	SP1
