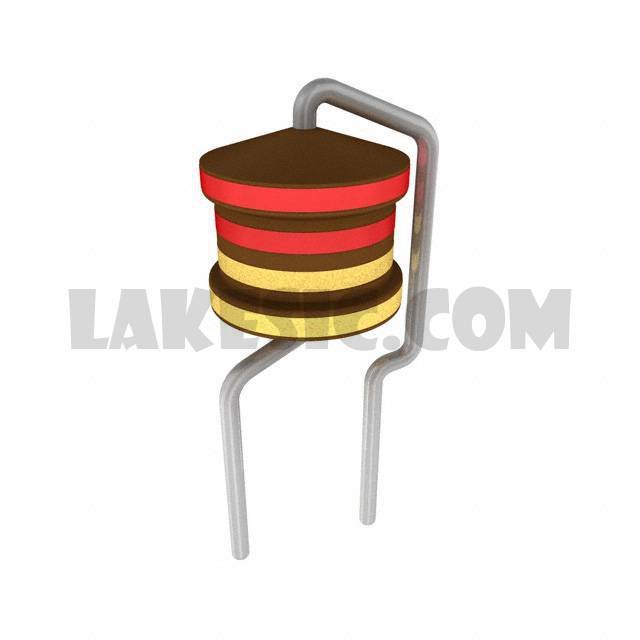

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B82144B Series
Standard Package	1
Manufacturer	EPCOS (TDK)
Series	LBC
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	2.2mH
Tolerance	±5%
Current Rating (Amps)	180mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	9.5Ohm Max
Q @ Freq	60 @ 252kHz
Frequency - Self Resonant	1.5MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.256" Dia (6.50mm)
Height - Seated (Max)	0.571" (14.50mm)

B82144B2334J000	EPCOS (TDK), 330µH Unshielded Wirewound Inductor 700mA 1.53Ohm Max Radial, Vertical Cylinder, LBC	View
B82144B2182K000	EPCOS (TDK), 1.8µH Unshielded Wirewound Inductor 3.75A 50mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2184J000	EPCOS (TDK), 180µH Unshielded Wirewound Inductor 950mA 785mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2683J000	EPCOS (TDK), 68µH Unshielded Wirewound Inductor 1.5A 350mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2334J000	EPCOS (TDK), 330µH Unshielded Wirewound Inductor 700mA 1.53Ohm Max Axial, LBC	View
B82144A2102K000	EPCOS (TDK), 1µH Unshielded Wirewound Inductor 2.2A 80mOhm Max Axial, LBC	View
B82144B2124J000	EPCOS (TDK), 120µH Unshielded Wirewound Inductor 1.1A 600mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2103K000	EPCOS (TDK), 10µH Unshielded Wirewound Inductor 2.45A 120mOhm Max Axial, LBC	View
B82144B2224J000	EPCOS (TDK), 220µH Unshielded Wirewound Inductor 900mA 1.01Ohm Max Radial, Vertical Cylinder, LBC	View
B82144B2472K000	EPCOS (TDK), 4.7µH Unshielded Wirewound Inductor 3.05A 80mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2822K000	EPCOS (TDK), 8.2µH Unshielded Wirewound Inductor 2.65A 105mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2472K000	EPCOS (TDK), 4.7µH Unshielded Wirewound Inductor 3.05A 80mOhm Max Axial, LBC	View

B82144B1225J000

Part NumberB82144B1225J000
