B82144B2222K000
B82144B2222K000

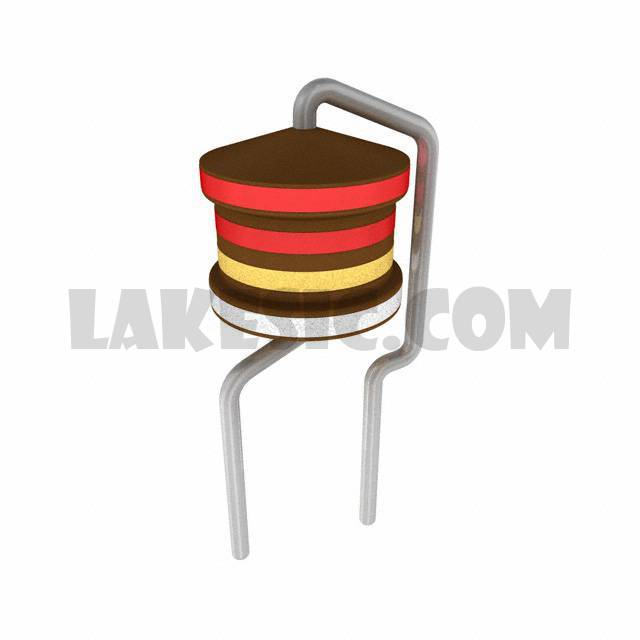

Part Number B82144B2222K000
Description FIXED IND 2.2UH 3.65A 55 MOHM TH
Package / Case Radial, Vertical Cylinder
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 2.2µH Unshielded Wirewound Inductor 3.65A 55mOhm Max Radial, Vertical Cylinder
To learn about the specification of B82144B2222K000, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B82144B2222K000 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B82144B2222K000.
We are offering B82144B2222K000 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
B82144B2222K000 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet B82144B2 Series
Standard Package 1
Manufacturer EPCOS (TDK)
Series LBC
Packaging Cut Tape (CT)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 2.2µH
Tolerance ±10%
Current Rating (Amps) 3.65A
Current - Saturation 6A
Shielding Unshielded
DC Resistance (DCR) 55mOhm Max
Q @ Freq 60 @ 2.52MHz
Frequency - Self Resonant 140MHz
Ratings -
Operating Temperature -55°C ~ 125°C
Inductance Frequency - Test 1MHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Supplier Device Package -
Size / Dimension 0.256" Dia (6.50mm)
Height - Seated (Max) 0.551" (14.00mm)
