Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B82144F2 Series
Standard Package	1
Manufacturer	EPCOS (TDK)
Series	LBC
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	56µH
Tolerance	±5%
Current Rating (Amps)	1.6A
Current - Saturation	1.3A
Shielding	Unshielded
DC Resistance (DCR)	310mOhm Max
Q @ Freq	40 @ 79.6kHz
Frequency - Self Resonant	6.8MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Through Hole
Package / Case	Axial
Supplier Device Package	Axial

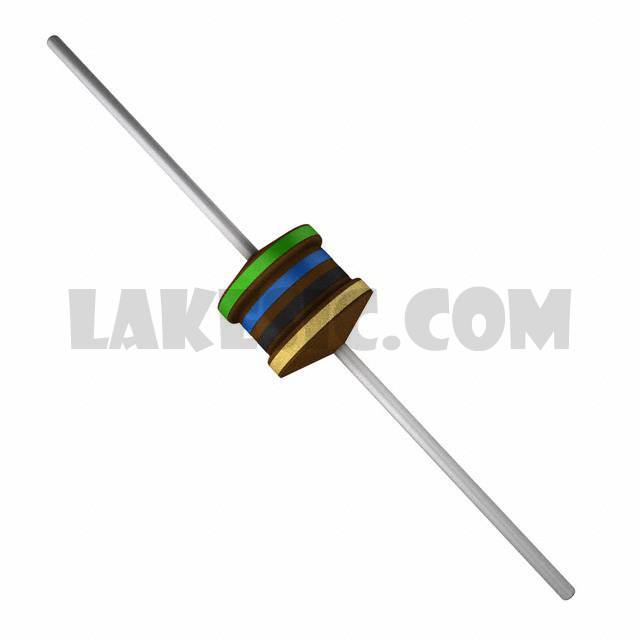

Size / Dimension	0.256" Dia x 0.362" L (6.50mm x 9.20mm)
Height - Seated (Max)	-

B82144B2182K000	EPCOS (TDK), 1.8µH Unshielded Wirewound Inductor 3.75A 50mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2333J000	EPCOS (TDK), 33µH Unshielded Wirewound Inductor 1.9A 220mOhm Max Axial, LBC	View
B82144F2334J000	EPCOS (TDK), 330µH Unshielded Wirewound Inductor 700mA 1.53Ohm Max Axial, LBC	View
B82144B2223K000	EPCOS (TDK), 22µH Unshielded Wirewound Inductor 2.1A 175mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2152K000	EPCOS (TDK), 1.5µH Unshielded Wirewound Inductor 4.1A 45mOhm Max Axial, LBC	View
B82144B2103K000	EPCOS (TDK), 10µH Unshielded Wirewound Inductor 2.45A 120mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B1225J000	EPCOS (TDK), 2.2mH Unshielded Wirewound Inductor 180mA 9.5Ohm Max Radial, Vertical Cylinder, LBC	View
B82144B1335J000	EPCOS (TDK), 3.3mH Unshielded Wirewound Inductor 150mA 13.8Ohm Max Radial, Vertical Cylinder, LBC	View
B82144B2184J000	EPCOS (TDK), 180µH Unshielded Wirewound Inductor 950mA 785mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2103K000	EPCOS (TDK), 10µH Unshielded Wirewound Inductor 2.45A 120mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2822K000	EPCOS (TDK), 8.2µH Unshielded Wirewound Inductor 2.65A 105mOhm Max Axial, LBC	View
B82144F2394J000	EPCOS (TDK), 390µH Unshielded Wirewound Inductor 650mA 1.72Ohm Max Axial, LBC	View

B82144F2563J000

Part NumberB82144F2563J000
