B82720H0015A035
B82720H0015A035

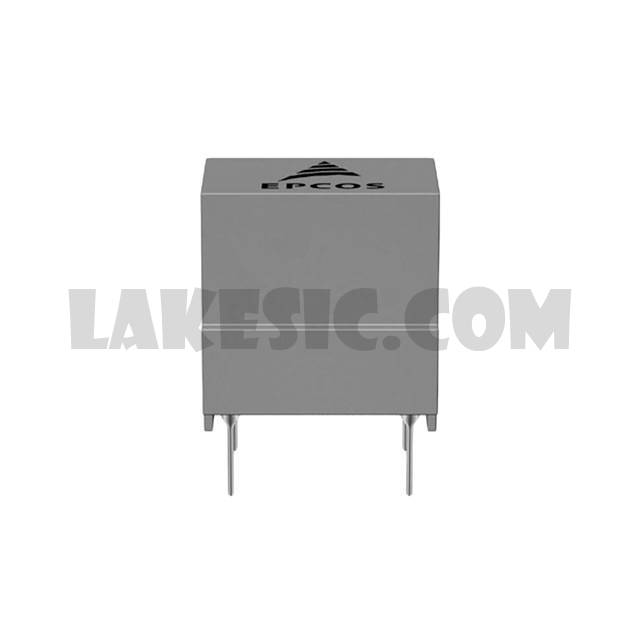

Part Number B82720H0015A035 Description CMC 68MH 200MA 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 68mH @ 10kHz 2 Line Common Mode Choke Through Hole 200mA DCR 3.3Ohm (Typ)
To learn about the specification of B82720H0015A035, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B82720H0015A035 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B82720H0015A035.
We are offering B82720H0015A035 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
B82720H0015A035 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet B82720H15 Series Standard Package 150 Manufacturer EPCOS (TDK) Series B82720 Packaging Tray Part Status Active Filter Type Signal Line Number of Lines 2 Inductance @ Frequency 68mH @ 10kHz Current Rating (Max) 200mA DC Resistance (DCR) (Max) 3.3Ohm (Typ) Voltage Rating - DC 80V Voltage Rating - AC 42V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 0.512" L x 0.374" W (13.00mm x 9.50mm) Height (Max) 0.551" (14.00mm) Package / Case Vertical, 4 PC Pin
