BAV70HMFHT116

Part NumberBAV70HMFHT116

ManufacturerRohm Semiconductor

DescriptionHIGH RELIABILITY AND SMALL MOLD

DatasheetBAV70HMFH

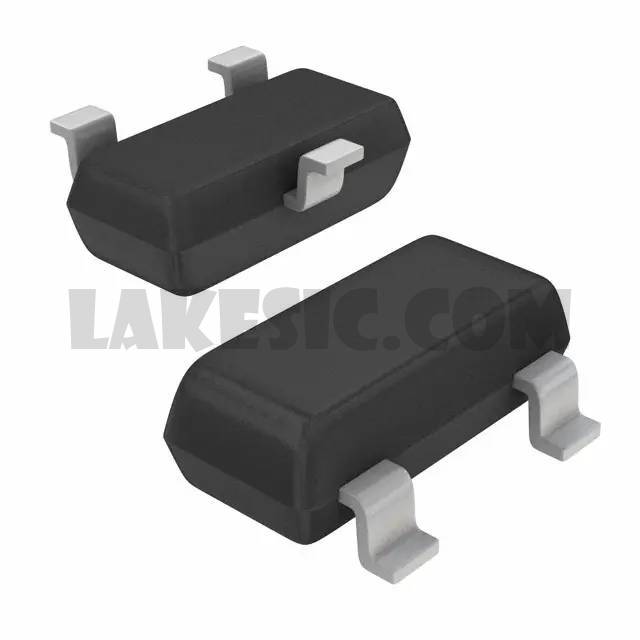

Package / CaseTO-236-3, SC-59, SOT-23-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Standard 80V 215mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3

To learn about the specification of BAV70HMFHT116, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAV70HMFHT116 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAV70HMFHT116.
We are offering BAV70HMFHT116 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAV70HMFHT116 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	BAV70HMFH
Standard Package	1
Manufacturer	Rohm Semiconductor
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	80V
Current - Average Rectified (Io) (per Diode)	215mA (DC)
Voltage - Forward (Vf) (Max) @ If	1.25V @ 150mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	4ns
Current - Reverse Leakage @ Vr	500nA @ 80V
Operating Temperature - Junction	150°C (Max)
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SSD3
