Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	RF Discretes Selection Guide
Standard Package	3000
Manufacturer	Infineon Technologies
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	3.5V
Frequency - Transition	45GHz
Noise Figure (dB Typ @ f)	0.95dB @ 1.8GHz
Gain	22.5dB
Power - Max	100mW
DC Current Gain (hFE) (Min) @ Ic, Vce	70 @ 20mA, 2V
Current - Collector (Ic) (Max)	40mA
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount

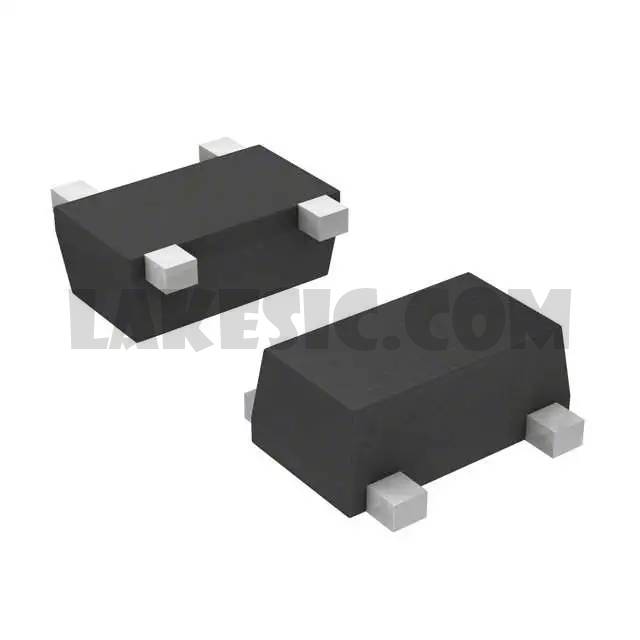

Package / Case	4-SMD, Flat Leads
Supplier Device Package	4-TSFP
Base Part Number	BFP520

BFP740FESDH6327XTSA1	Infineon Technologies, RF Transistor NPN 4.7V 45mA 47GHz 160mW Surface Mount 4-TSFP,	View
BFP196WH6327XTSA1	Infineon Technologies, RF Transistor NPN 12V 150mA 7.5GHz 700mW Surface Mount PG-SOT343-4,	View
2SC5095-O(TE85L,F)	Toshiba Semiconductor and Storage, RF Transistor NPN 10V 15mA 10GHz 100mW Surface Mount SC-70,	View
MMBTH10RG	ON Semiconductor, RF Transistor NPN 40V 50mA 450MHz 225mW Surface Mount SOT-23-3,	View
BFP650FH6327XTSA1	Infineon Technologies, RF Transistor NPN 4.5V 150mA 42GHz 500mW Surface Mount 4-TSFP,	View
2SC2714-O(TE85L,F)	Toshiba Semiconductor and Storage, RF Transistor NPN 30V 20mA 550MHz 100mW Surface Mount S-Mini,	View
2N5770	Central Semiconductor Corp, RF Transistor NPN 15V 50mA 900MHz 625mW Through Hole TO-92,	View
NSVF6003SB6T1G	ON Semiconductor, RF Transistor NPN 12V 150mA 7GHz 800mW Surface Mount 6-CPH, Automotive, AEC-Q101	View
BFP720ESDH6327XTSA1	Infineon Technologies, RF Transistor NPN 4.7V 30mA 43GHz 100mW Surface Mount SOT-343,	View
2SC5085-Y(TE85L,F)	Toshiba Semiconductor and Storage, RF Transistor NPN 12V 80mA 7GHz 100mW Surface Mount USM,	View
2SC5065-O(TE85L,F)	Toshiba Semiconductor and Storage, RF Transistor NPN 12V 30mA 7GHz 100mW Surface Mount USM,	View
2SC5086-O,LF	Toshiba Semiconductor and Storage, RF Transistor NPN 12V 80mA 7GHz 100mW Surface Mount SSM,	View

BFP520FH6327XTSA1

Part NumberBFP520FH6327XTSA1
