BSB015N04NX3GXUMA1
BSB015N04NX3GXUMA1

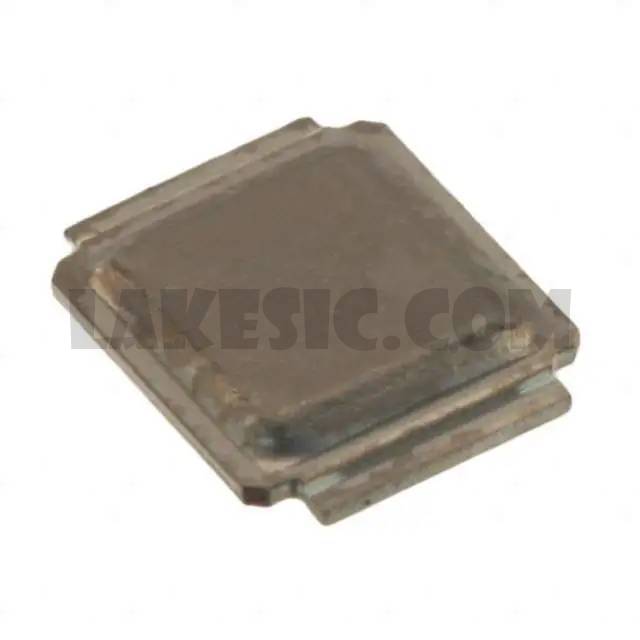

Part Number BSB015N04NX3GXUMA1 Description MOSFET N-CH 40V 180A 2WDSON Package / Case 3-WDSONUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description N-Channel 40V 36A (Ta), 180A (Tc) 2.8W (Ta), 89W (Tc) Surface Mount MG-WDSON-2, CanPAK M™
To learn about the specification of BSB015N04NX3GXUMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BSB015N04NX3GXUMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BSB015N04NX3GXUMA1.
We are offering BSB015N04NX3GXUMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
BSB015N04NX3GXUMA1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet BSB015N04NX3 G Standard Package 1 Manufacturer Infineon Technologies Series OptiMOS™ Packaging Cut Tape (CT) Part Status Active FET Type N-Channel Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 40V Current - Continuous Drain (Id) @ 25°C 36A (Ta), 180A (Tc) Drive Voltage (Max Rds On, Min Rds On) 10V Rds On (Max) @ Id, Vgs 1.5mOhm @ 30A, 10V Vgs(th) (Max) @ Id 4V @ 250µA Gate Charge (Qg) (Max) @ Vgs 142nC @ 10V Vgs (Max) ±20V Input Capacitance (Ciss) (Max) @ Vds 12000pF @ 20V FET Feature - Power Dissipation (Max) 2.8W (Ta), 89W (Tc) Operating Temperature -40°C ~ 150°C (TJ) Mounting Type Surface Mount Supplier Device Package MG-WDSON-2, CanPAK M™ Package / Case 3-WDSON
