BSD223PH6327XTSA1

BSD223PH6327XTSA1

Part NumberBSD223PH6327XTSA1

ManufacturerInfineon Technologies

DescriptionMOSFET 2P-CH 20V 0.39A SOT363

DatasheetBSD223P

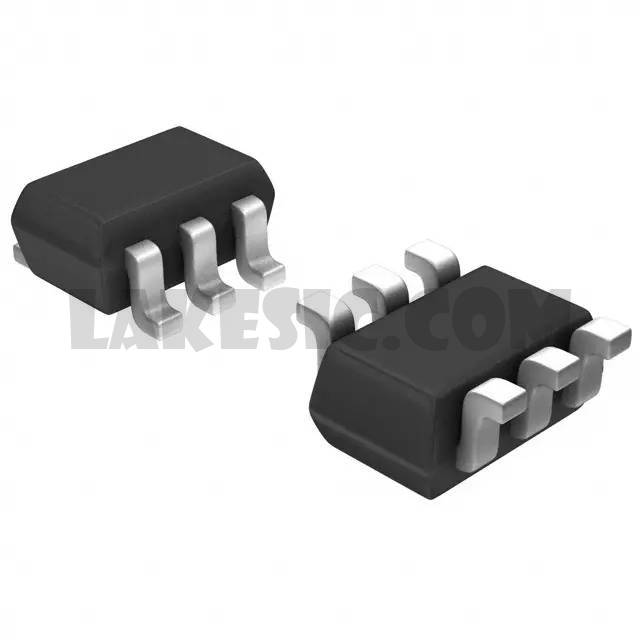

Package / Case6-VSSOP, SC-88, SOT-363

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 P-Channel (Dual) 20V 390mA 250mW Surface Mount PG-SOT363-6

To learn about the specification of BSD223PH6327XTSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BSD223PH6327XTSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BSD223PH6327XTSA1.
We are offering BSD223PH6327XTSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BSD223PH6327XTSA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	BSD223P
Standard Package	1
Manufacturer	Infineon Technologies
Series	OptiMOS™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 P-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	390mA
Rds On (Max) @ Id, Vgs	1.2Ohm @ 390mA, 4.5V
Vgs(th) (Max) @ Id	1.2V @ 1.5µA
Gate Charge (Qg) (Max) @ Vgs	0.62nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	56pF @ 15V
Power - Max	250mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-VSSOP, SC-88, SOT-363
Supplier Device Package	PG-SOT363-6
