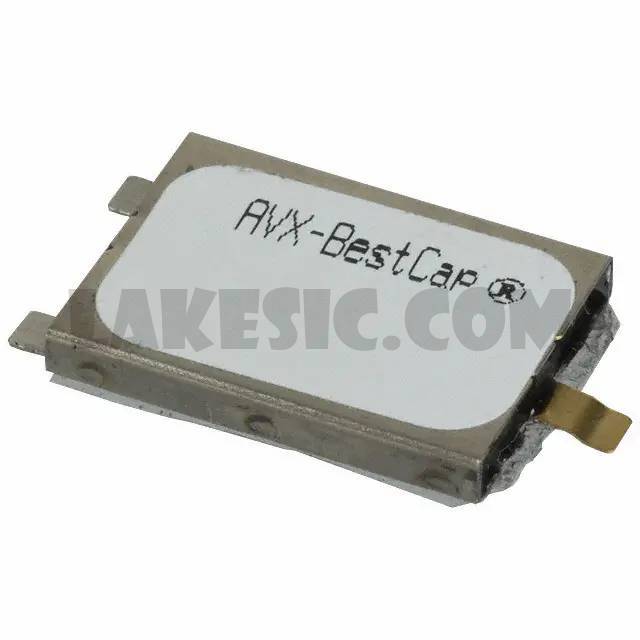

Categories	Capacitors / Electric Double Layer Capacitors (EDLC), Supercapacitors
Datasheet	BestCap Series
Standard Package	400
Manufacturer	AVX Corporation
Series	BestCap® BZ
Packaging	Tray
Part Status	Active
Capacitance	15mF
Tolerance	-20%, +80%
Voltage - Rated	5.5V
ESR (Equivalent Series Resistance)	250mOhm
Lifetime @ Temp.	1000 Hrs @ 70°C
Termination	SMD (SMT) Tabs
Mounting Type	Surface Mount
Package / Case	BZ05, 3 Lead
Lead Spacing	-
Size / Dimension	0.787" L x 0.591" W (20.00mm x 15.00mm)
Height - Seated (Max)	0.106" (2.70mm)
Operating Temperature	-20°C ~ 70°C

BZ019B223ZSB	AVX Corporation, 22mF (EDLC) Supercapacitor 9V BZ01, 3 Lead 250mOhm 1000 Hrs @ 70°C, BestCap® BZ	View
BZ015B603ZSB	AVX Corporation, 60mF (EDLC) Supercapacitor 5.5V BZ01, 3 Lead 80mOhm 1000 Hrs @ 70°C, BestCap® BZ	View
BZ05FB682ZSB	AVX Corporation, 6.8mF (EDLC) Supercapacitor 15V BZ05, 3 Lead 500mOhm 1000 Hrs @ 70°C, BestCap® BZ	View
BZ113B104ZSB	AVX Corporation, 100mF (EDLC) Supercapacitor 3.6V BZ11, 3 Lead 100mOhm 1000 Hrs @ 70°C, BestCap® BZ	View
BZ025A404ZAB	AVX Corporation, 400mF (EDLC) Supercapacitor 5.5V BZ02, 4 Lead 35mOhm 1000 Hrs @ 70°C, BestCap® BZ	View
BZ014B333ZSB	AVX Corporation, 33mF (EDLC) Supercapacitor 4.5V BZ01, 3 Lead 150mOhm 1000 Hrs @ 70°C, BestCap® BZ	View
BZ05CA103ZSB	AVX Corporation, 10mF (EDLC) Supercapacitor 12V BZ05, 3 Lead 500mOhm 1000 Hrs @ 70°C, BestCap® BZ	View
BZ013A703ZSB	AVX Corporation, 70mF (EDLC) Supercapacitor 3.6V BZ01, 3 Lead 140mOhm 1000 Hrs @ 70°C, BestCap® BZ	View
BZ023A284ZAB	AVX Corporation, 280mF (EDLC) Supercapacitor 3.6V BZ02, 4 Lead 45mOhm 1000 Hrs @ 70°C, BestCap® BZ	View
BZ01CB153ZSB	AVX Corporation, 15mF (EDLC) Supercapacitor 12V BZ01, 3 Lead 350mOhm 1000 Hrs @ 70°C, BestCap® BZ	View
BZ015A104ZSB	AVX Corporation, 100mF (EDLC) Supercapacitor 5.5V BZ01, 3 Lead 80mOhm 1000 Hrs @ 70°C, BestCap® BZ	View
BZ015A503ZLB	AVX Corporation, 50mF (EDLC) Supercapacitor 5.5V BZ01, 3 Lead 160mOhm 1000 Hrs @ 70°C, BestCap® BZ	View

BZ055B153ZSB

Part NumberBZ055B153ZSB
