C-7X
C-7X

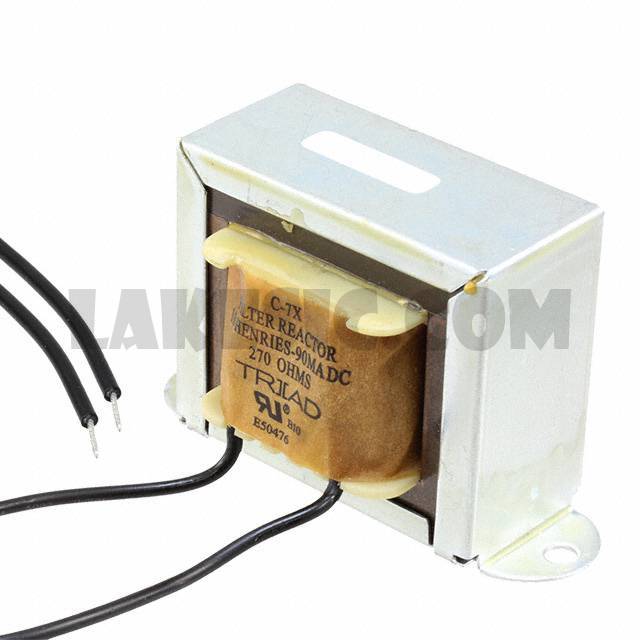

Part Number C-7X Description FIXED IND 10H 90MA 270 OHM CHASS Datasheet C-7X Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 10H Unshielded Wirewound Inductor 90mA 270Ohm Nonstandard
To learn about the specification of C-7X, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add C-7X with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of C-7X.
We are offering C-7X for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
C-7X - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet C-7X Standard Package 1 Manufacturer Triad Magnetics Series C Packaging Bulk Part Status Active Type Wirewound Material - Core - Inductance 10H Tolerance -20%, +50% Current Rating (Amps) 90mA Current - Saturation - Shielding Unshielded DC Resistance (DCR) 270Ohm Q @ Freq - Frequency - Self Resonant - Ratings - Operating Temperature -40°C ~ 85°C Inductance Frequency - Test 120Hz Mounting Type Chassis Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 3.312" L x 2.000" W (84.12mm x 50.80mm) Height - Seated (Max) 1.940" (49.28mm)
