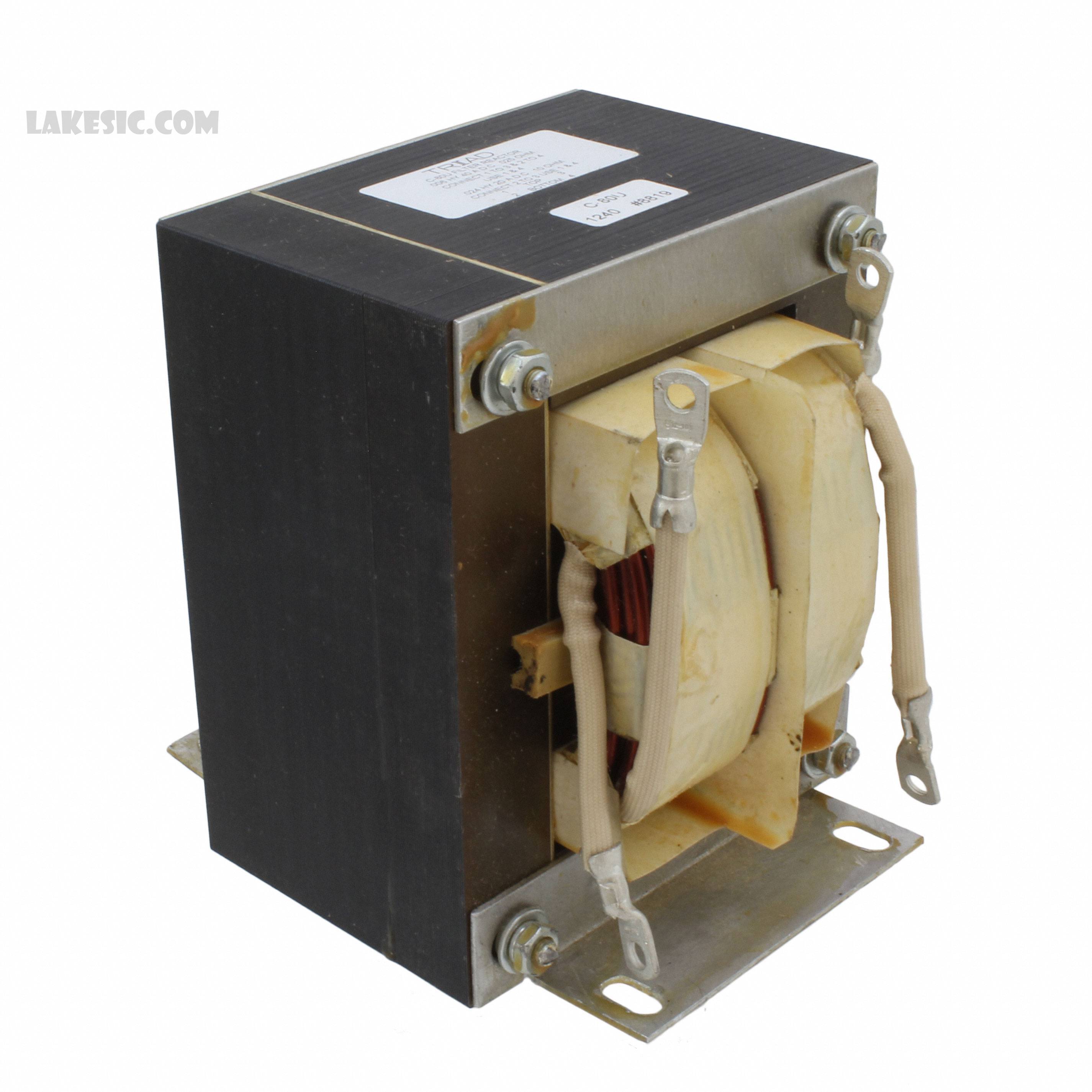

Part Number C-80U Description FIXED IND 24MH 40A 25 MOHM CHASS Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 24mH Unshielded Wirewound Inductor 40A 25mOhm Nonstandard
To learn about the specification of C-80U, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add C-80U with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of C-80U.
We are offering C-80U for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
C-80U - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet C-80U Standard Package 1 Manufacturer Triad Magnetics Series C Packaging Bulk Part Status Active Type Wirewound Material - Core - Inductance 24mH Tolerance -20%, +50% Current Rating (Amps) 40A Current - Saturation - Shielding Unshielded DC Resistance (DCR) 25mOhm Q @ Freq - Frequency - Self Resonant - Ratings - Operating Temperature -40°C ~ 85°C Inductance Frequency - Test 120Hz Mounting Type Chassis Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 4.562" L x 5.500" W (115.87mm x 139.70mm) Height - Seated (Max) 5.312" (134.92mm)
