C-85X
C-85X

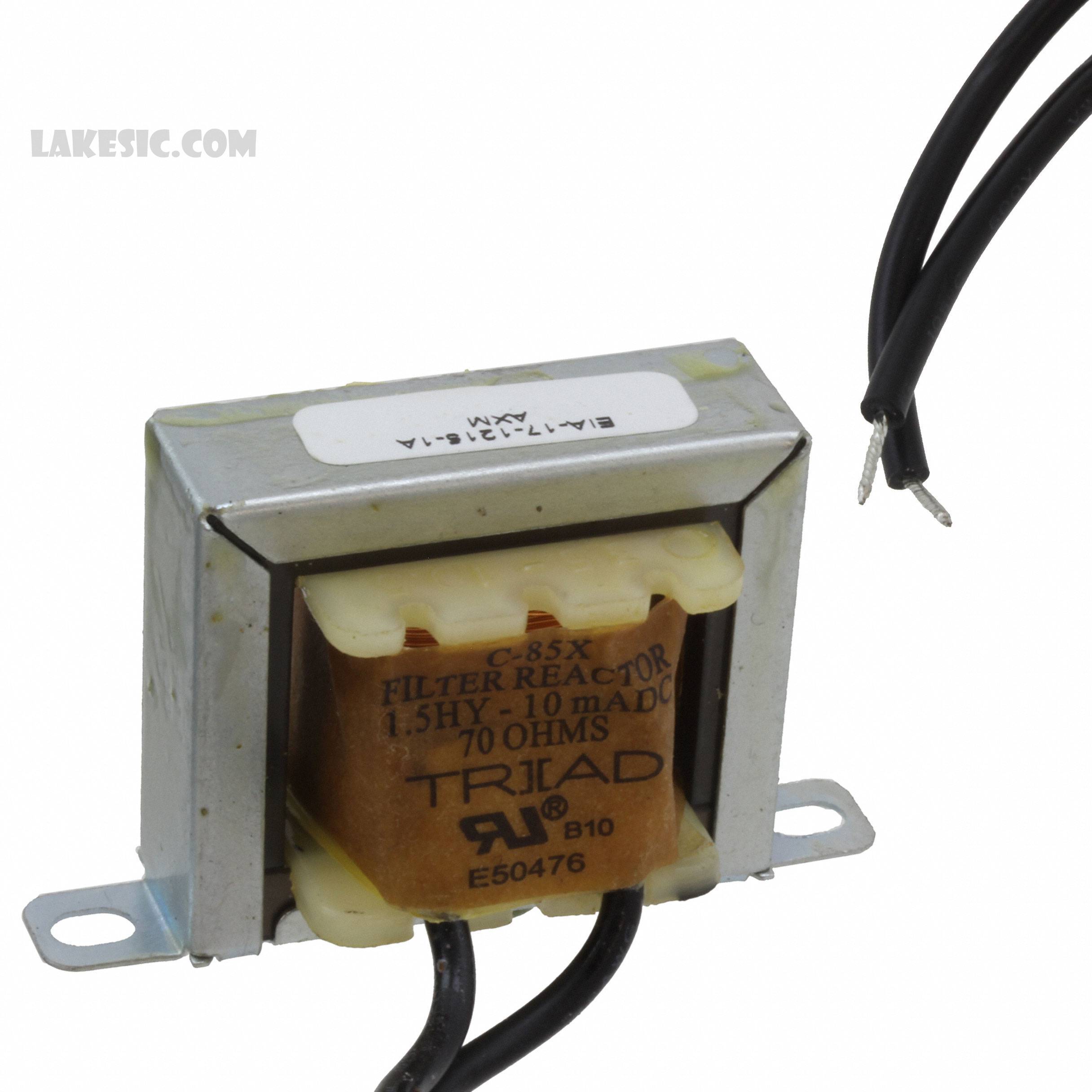

Part Number C-85X Description FIXED IND 1.5H 10MA 70 OHM CHASS Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 1.5H Unshielded Wirewound Inductor 10mA 70Ohm Nonstandard
To learn about the specification of C-85X, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add C-85X with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of C-85X.
We are offering C-85X for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
C-85X - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet C-85X Standard Package 1 Manufacturer Triad Magnetics Series C Packaging Bulk Part Status Active Type Wirewound Material - Core - Inductance 1.5H Tolerance -20%, +50% Current Rating (Amps) 10mA Current - Saturation - Shielding Unshielded DC Resistance (DCR) 70Ohm Q @ Freq - Frequency - Self Resonant - Ratings - Operating Temperature -40°C ~ 85°C Inductance Frequency - Test 120Hz Mounting Type Chassis Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 2.125" L x 1.125" W (53.97mm x 28.58mm) Height - Seated (Max) 1.250" (31.75mm)
