Categories	Capacitors / Film Capacitors
Datasheet	C4AE Series
Standard Package	234
Manufacturer	KEMET
Series	C4AE
Packaging	Bulk
Part Status	Active
Capacitance	10µF
Tolerance	±10%
Voltage Rating - AC	-
Voltage Rating - DC	450V
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	8.1 mOhms
Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.240" L x 0.512" W (31.50mm x 13.00mm)
Height - Seated (Max)	0.992" (25.20mm)
Termination	PC Pins
Lead Spacing	1.083" (27.50mm)
Applications	DC Link, DC Filtering; High Frequency, Switching
Ratings	-
Features	-

C4AEHBW5200A3FJ	KEMET, 20µF Film Capacitor 600V Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEOBU4150A1WJ	KEMET, 1.5µF Film Capacitor 900V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEHBU5150A12J	KEMET, 15µF Film Capacitor 600V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEHBU4330A1WJ	KEMET, 3.3µF Film Capacitor 600V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEGBW6100A3NJ	KEMET, 100µF Film Capacitor 450V Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEGBU4680A1XJ	KEMET, 6.8µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEGBW5350A3JJ	KEMET, 35µF Film Capacitor 450V Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEJBW5150A3FJ	KEMET, 15µF Film Capacitor 700V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEJBW5300A3LJ	KEMET, 30µF Film Capacitor 700V Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEGBU5100A1XK	KEMET, 10µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEQBW5120A3LJ	KEMET, 12µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEOBW5120A3FJ	KEMET, 12µF Film Capacitor 900V Polypropylene (PP), Metallized Radial, C4AE	View

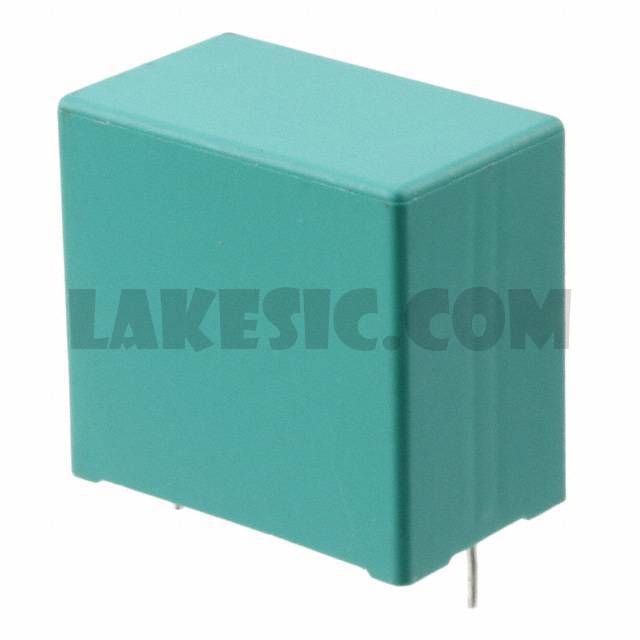

C4AEGBU5100A1XK

Part NumberC4AEGBU5100A1XK
