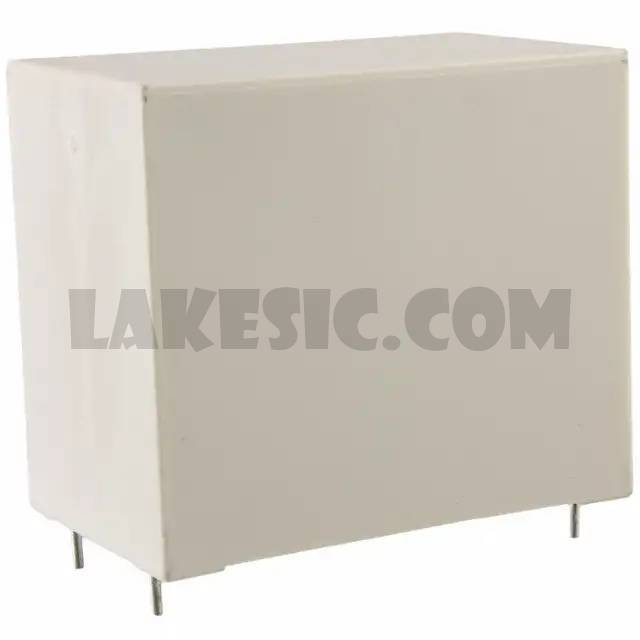

Categories	Capacitors / Film Capacitors
Datasheet	C4AE Series
Standard Package	23
Manufacturer	KEMET
Series	C4AE
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±5%
Voltage Rating - AC	-
Voltage Rating - DC	450V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	2.264" L x 1.378" W (57.50mm x 35.00mm)
Height - Seated (Max)	1.969" (50.00mm)
Termination	PC Pins
Lead Spacing	2.067" (52.50mm)
Applications	DC Link, DC Filtering; High Frequency, Switching
Ratings	-
Features	-

C4AEQBU4500A12J	KEMET, 5µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, C4AE	View
C4AEOBU4500A11J	KEMET, 5µF Film Capacitor 900V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEOBU4270A1XJ	KEMET, 2.7µF Film Capacitor 900V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEOBW5400A3NJ	KEMET, 40µF Film Capacitor 900V Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEOBW5300A3MJ	KEMET, 30µF Film Capacitor 900V Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEQBW4800A3FJ	KEMET, 8µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEJBW5300A3LJ	KEMET, 30µF Film Capacitor 700V Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEOBU4800A12J	KEMET, 8µF Film Capacitor 900V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEGBW6100H3NJ	KEMET, 100µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEJBU4500A1YJ	KEMET, 5µF Film Capacitor 700V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEJBW5450A3MJ	KEMET, 45µF Film Capacitor 700V Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEJBW5150A3FJ	KEMET, 15µF Film Capacitor 700V Polypropylene (PP), Metallized Radial, C4AE	View

C4AEGBW6100H3NJ

Part NumberC4AEGBW6100H3NJ
