Categories	Capacitors / Film Capacitors
Datasheet	C4A(S,T) Series
Standard Package	234
Manufacturer	KEMET
Series	C4AT
Packaging	Bulk
Part Status	Active
Capacitance	1µF
Tolerance	±5%
Voltage Rating - AC	350V
Voltage Rating - DC	600V
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	7.7 mOhms
Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.260" L x 0.512" W (32.00mm x 13.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Termination	PC Pins
Lead Spacing	1.083" (27.50mm)
Applications	DC Link, DC Filtering; High Frequency, Switching
Ratings	-
Features	-

C4ATGBW5200A3MJ	KEMET, 20µF Film Capacitor 275V 450V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATFBW5300A3MJ	KEMET, 30µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATJBU4300A3GK	KEMET, 3µF Film Capacitor 400V 700V Polypropylene (PP), Metallized Radial, C4AT	View
C4ATJBW4100A3DJ	KEMET, 1µF Film Capacitor 400V 700V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATGBW5100A3FJ	KEMET, 10µF Film Capacitor 275V 450V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATDBW5200A30J	KEMET, 20µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATFBW5400A3NJ	KEMET, 40µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATFBW5200A3LJ	KEMET, 20µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATJBW5100A3MJ	KEMET, 10µF Film Capacitor 400V 700V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATGBW5150A3LJ	KEMET, 15µF Film Capacitor 275V 450V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATMBW4470A3LJ	KEMET, 4.7µF Film Capacitor 450V 850V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATGBW4330A3EJ	KEMET, 3.3µF Film Capacitor 275V 450V Polypropylene (PP), Metallized Radial, C4AT	View

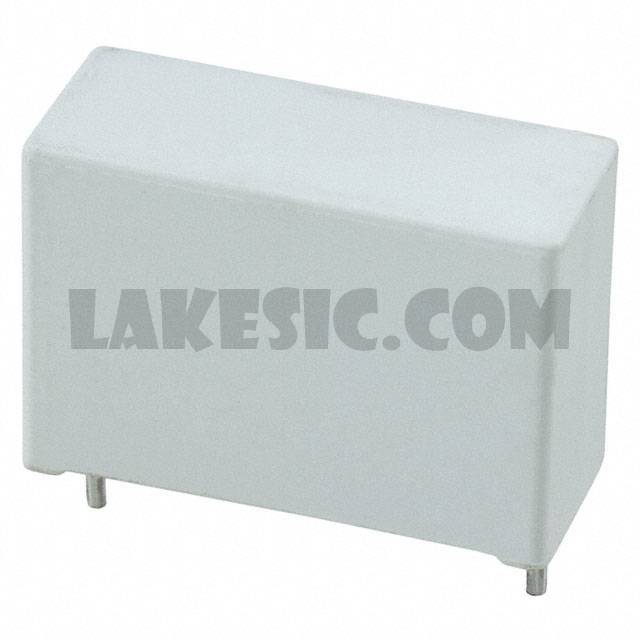

C4ATHBU4100A3BJ

Part NumberC4ATHBU4100A3BJ
