Categories	Capacitors / Film Capacitors
Datasheet	C4ATHBW5200A3NJ Spec
Standard Package	23
Manufacturer	KEMET
Series	C4AT
Packaging	Bulk
Part Status	Active
Capacitance	20µF
Tolerance	±5%
Voltage Rating - AC	350V
Voltage Rating - DC	600V
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	1.9 mOhms
Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial - 4 Leads
Size / Dimension	2.264" L x 1.378" W (57.50mm x 35.00mm)
Height - Seated (Max)	1.969" (50.00mm)
Termination	PC Pins
Lead Spacing	2.067" (52.50mm)
Applications	DC Link, DC Filtering; High Frequency, Switching
Ratings	-
Features	-

C4ATGBW5150A3LJ	KEMET, 15µF Film Capacitor 275V 450V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATFBW5400A3NJ	KEMET, 40µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATDBW5300A30J	KEMET, 30µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATFBW5300A3MJ	KEMET, 30µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATDBW5600A30J	KEMET, 60µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATJBW5100A3MJ	KEMET, 10µF Film Capacitor 400V 700V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATDBW5200A30J	KEMET, 20µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATHBW4900A3LJ	KEMET, 9µF Film Capacitor 350V 600V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATHBU4100A3BJ	KEMET, 1µF Film Capacitor 350V 600V Polypropylene (PP), Metallized Radial, C4AT	View
C4ATJBW4100A3DJ	KEMET, 1µF Film Capacitor 400V 700V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATFBW5100A3FJ	KEMET, 10µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, C4AT	View
C4ATGBW4680A3GJ	KEMET, 6.8µF Film Capacitor 275V 450V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View

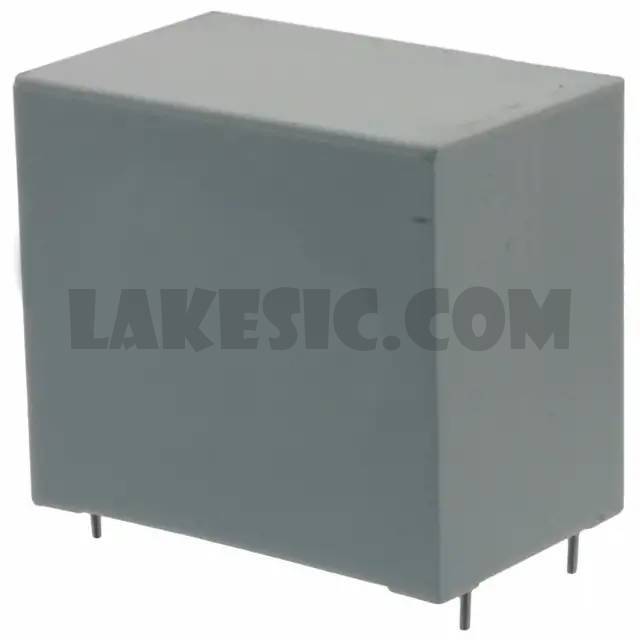

C4ATHBW5200A3NJ
