Categories	Capacitors / Film Capacitors
Datasheet	C4ATGBW5150A3LJ Spec
Standard Package	36
Manufacturer	KEMET
Series	C4AT
Packaging	Bulk
Part Status	Active
Capacitance	15µF
Tolerance	±5%
Voltage Rating - AC	275V
Voltage Rating - DC	450V
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	2.8 mOhms
Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial - 4 Leads
Size / Dimension	1.654" L x 1.181" W (42.00mm x 30.00mm)
Height - Seated (Max)	1.772" (45.00mm)
Termination	PC Pins
Lead Spacing	1.476" (37.50mm)
Applications	DC Link, DC Filtering; High Frequency, Switching
Ratings	-
Features	-

C4ATDBW5200A30J	KEMET, 20µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATGBW5200A3MJ	KEMET, 20µF Film Capacitor 275V 450V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATDBW5300A30J	KEMET, 30µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATHBW4900A3LJ	KEMET, 9µF Film Capacitor 350V 600V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATFBU4200A3BJ	KEMET, 2µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, C4AT	View
C4ATFBW5400A3NJ	KEMET, 40µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATFBW5100A3FJ	KEMET, 10µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, C4AT	View
C4ATGBW5100A3FJ	KEMET, 10µF Film Capacitor 275V 450V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATMBW4470A3LJ	KEMET, 4.7µF Film Capacitor 450V 850V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATHBW5200A3NJ	KEMET, 20µF Film Capacitor 350V 600V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATFBW5300A3MJ	KEMET, 30µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATGBW4680A3GJ	KEMET, 6.8µF Film Capacitor 275V 450V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View

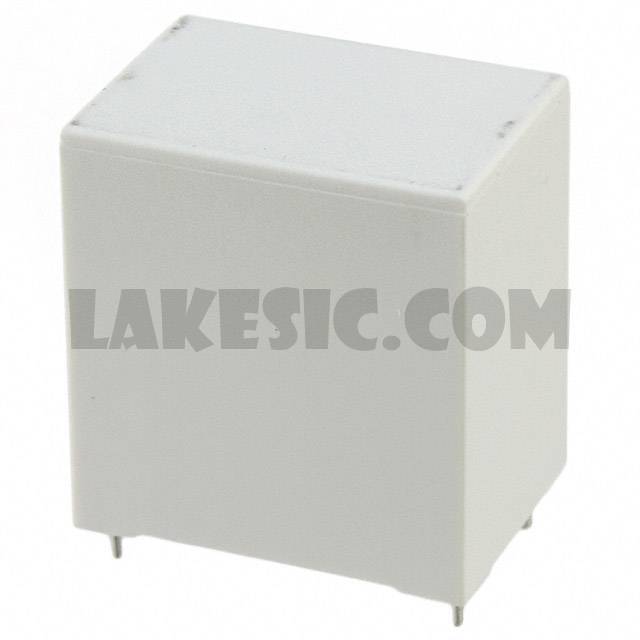

C4ATGBW5150A3LJ
