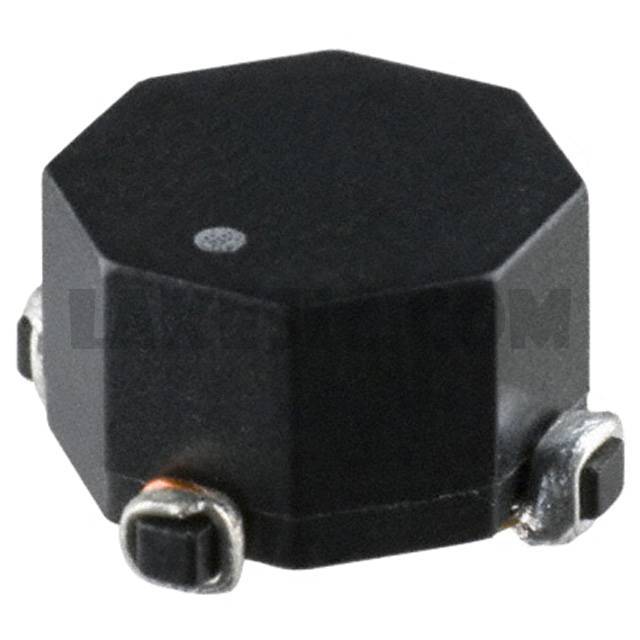

CMS2-2-R


CMS2-2-R

Part NumberCMS2-2-R

Manufacturer

Description

Datasheet

Package / CaseHorizontal, 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CMS2-2-R - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package800
ManufacturerEaton - Electronics Division
SeriesCMS
PackagingTape & Reel (TR)
Part StatusActive
Filter TypePower Line
Number of Lines2
Inductance @ Frequency40µH @ 100kHz
Current Rating (Max)4.4A
DC Resistance (DCR) (Max)8mOhm (Typ)
Voltage Rating - DC-
Voltage Rating - AC-
Operating Temperature-40°C ~ 160°C
Ratings-
Approvals-
Features-
Mounting TypeSurface Mount
Size / Dimension0.350" L x 0.350" W (8.90mm x 8.90mm)
Height (Max)0.236" (6.00mm)
Package / CaseHorizontal, 4 PC Pad
