CMT-8111
CMT-8111

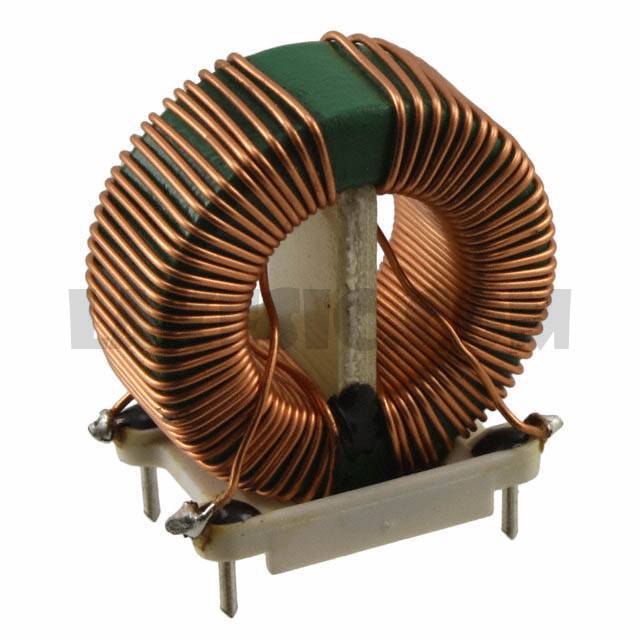

Part Number CMT-8111 Description COMMON MODE CHOKE 12MH 4A 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 12mH @ 1kHz 2 Line Common Mode Choke Through Hole 4A DCR 110mOhm
To learn about the specification of CMT-8111, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CMT-8111 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CMT-8111.
We are offering CMT-8111 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
CMT-8111 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet CMT-8111 Standard Package 1 Manufacturer Triad Magnetics Series CMT Packaging Bulk Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 12mH @ 1kHz Current Rating (Max) 4A DC Resistance (DCR) (Max) 110mOhm Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -55°C ~ 105°C Ratings - Approvals CSA, IEC, UL, VDE Features ESD Mounting Type Through Hole Size / Dimension 1.350" L x 0.800" W (34.29mm x 20.32mm) Height (Max) 1.450" (36.83mm) Package / Case Vertical, 4 PC Pin
