CMT-8118
CMT-8118

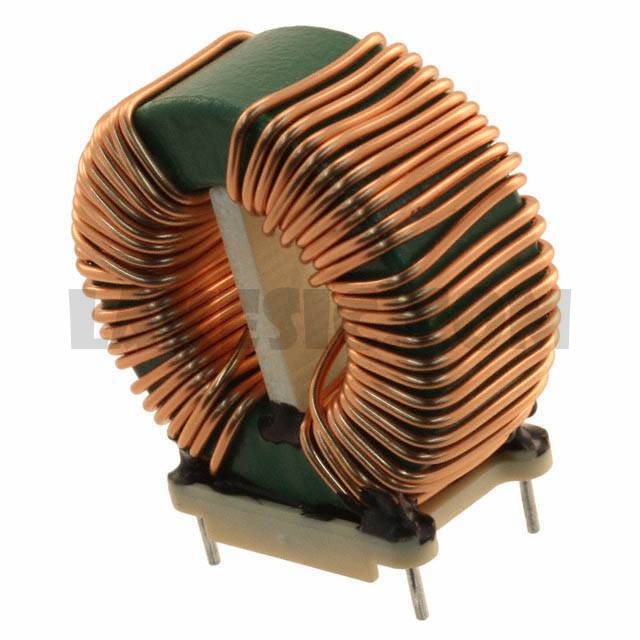

Part Number CMT-8118 Description CMC 7.3MH 9.3A 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 7.3mH @ 1kHz 2 Line Common Mode Choke Through Hole 9.3A DCR 32mOhm
To learn about the specification of CMT-8118, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CMT-8118 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CMT-8118.
We are offering CMT-8118 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
CMT-8118 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet CMT-8118 Standard Package 1 Manufacturer Triad Magnetics Series CMT Packaging Bulk Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 7.3mH @ 1kHz Current Rating (Max) 9.3A DC Resistance (DCR) (Max) 32mOhm Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -55°C ~ 105°C Ratings - Approvals CSA, IEC, UL, VDE Features ESD Mounting Type Through Hole Size / Dimension 1.650" L x 0.800" W (41.91mm x 20.32mm) Height (Max) 1.650" (41.91mm) Package / Case Vertical, 4 PC Pin
