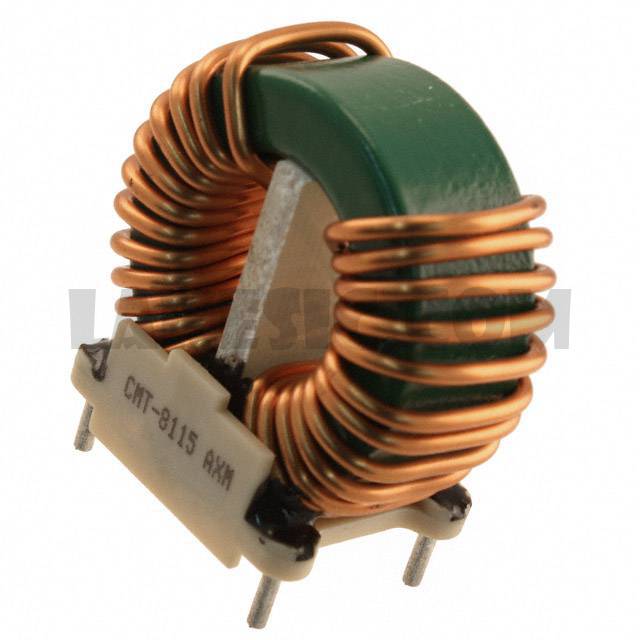

CMT-8115
CMT-8115
Part Number CMT-8115 Description CMC 1.2MH 16A 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 1.2mH @ 1kHz 2 Line Common Mode Choke Through Hole 16A DCR 6mOhm
To learn about the specification of CMT-8115, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CMT-8115 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CMT-8115.
We are offering CMT-8115 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
CMT-8115 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet CMT-8115 Standard Package 1 Manufacturer Triad Magnetics Series CMT Packaging Bulk Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 1.2mH @ 1kHz Current Rating (Max) 16A DC Resistance (DCR) (Max) 6mOhm Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -55°C ~ 105°C Ratings - Approvals CSA, IEC, UL, VDE Features ESD Mounting Type Through Hole Size / Dimension 1.500" L x 0.800" W (38.10mm x 20.32mm) Height (Max) 1.530" (38.86mm) Package / Case Vertical, 4 PC Pin
