CSD17577Q5A

CSD17577Q5A

Part NumberCSD17577Q5A

ManufacturerTexas Instruments

DescriptionMOSFET N-CH 30V 60A 8VSON

DatasheetCSD17577Q5A

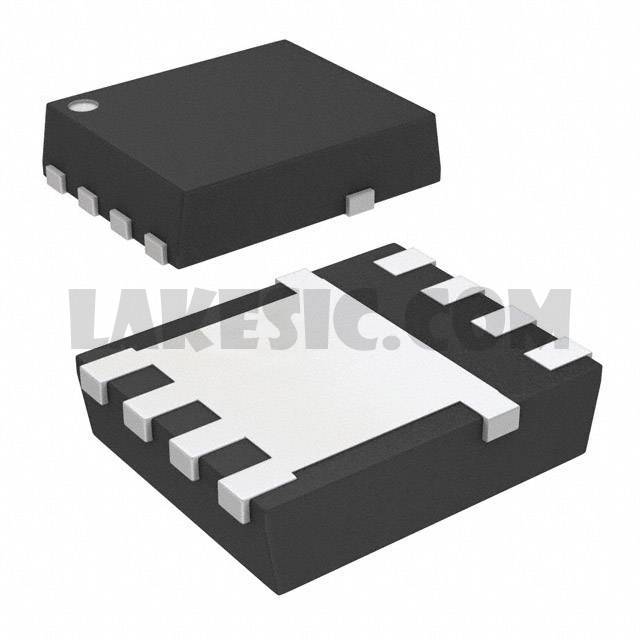

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 60A (Ta) 3W (Ta), 53W (Tc) Surface Mount 8-VSONP (5x6)

To learn about the specification of CSD17577Q5A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD17577Q5A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD17577Q5A.
We are offering CSD17577Q5A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD17577Q5A - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CSD17577Q5A
Standard Package	1
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	60A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.2mOhm @ 18A, 10V
Vgs(th) (Max) @ Id	1.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	35nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2310pF @ 15V
FET Feature	-
Power Dissipation (Max)	3W (Ta), 53W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-VSONP (5x6)
Package / Case	8-PowerTDFN
