CSD18542KTT

CSD18542KTT

Part NumberCSD18542KTT

ManufacturerTexas Instruments

DescriptionMOSFET N-CH 60V 200A D2PAK

DatasheetCSD18542KTT Datasheet

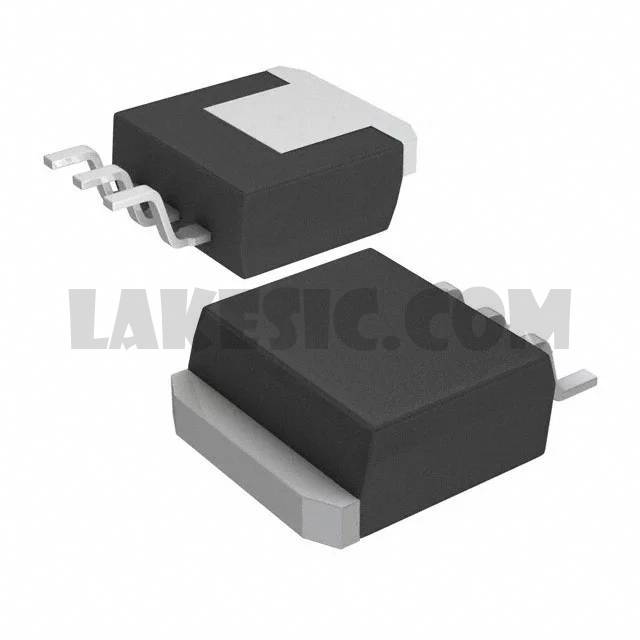

Package / CaseTO-263-4, D²Pak (3 Leads + Tab), TO-263AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 200A (Ta) 250W (Tc) Surface Mount DDPAK/TO-263-3

To learn about the specification of CSD18542KTT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD18542KTT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD18542KTT.
We are offering CSD18542KTT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD18542KTT - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CSD18542KTT Datasheet
Standard Package	1
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	200A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	57nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5070pF @ 30V
FET Feature	-
Power Dissipation (Max)	250W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DDPAK/TO-263-3
Package / Case	TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
