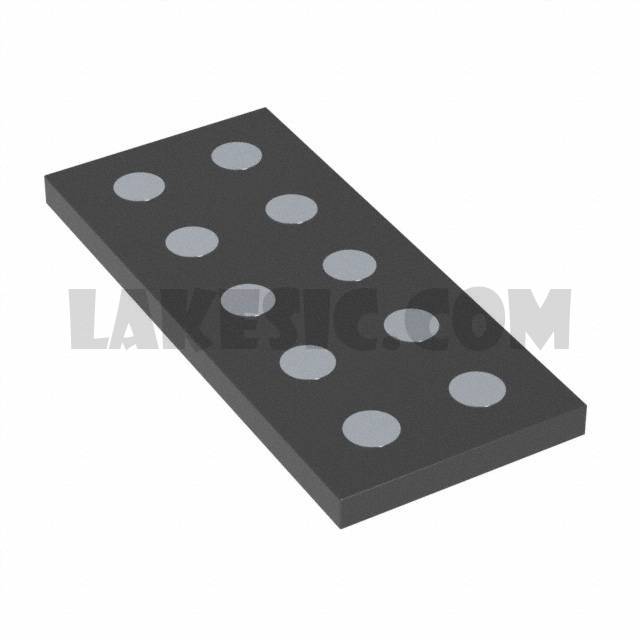

CSD87501L

CSD87501L

Part NumberCSD87501L

ManufacturerTexas Instruments

DescriptionMOSFET 2N-CH 30V 10PICOSTAR

DatasheetCSD87501L

Package / Case10-XFLGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Common Drain 2.5W Surface Mount 10-Picostar (3.37x1.47)

To learn about the specification of CSD87501L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD87501L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD87501L.
We are offering CSD87501L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD87501L - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	CSD87501L
Standard Package	3000
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	-
Current - Continuous Drain (Id) @ 25°C	-
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	40nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	-
Power - Max	2.5W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-XFLGA
Supplier Device Package	10-Picostar (3.37x1.47)
