CSD87503Q3ET

Part NumberCSD87503Q3ET

ManufacturerTexas Instruments

Description30-V DUAL N-CHANNEL MOSFET, COMM

DatasheetCSD87503Q3E Datasheet

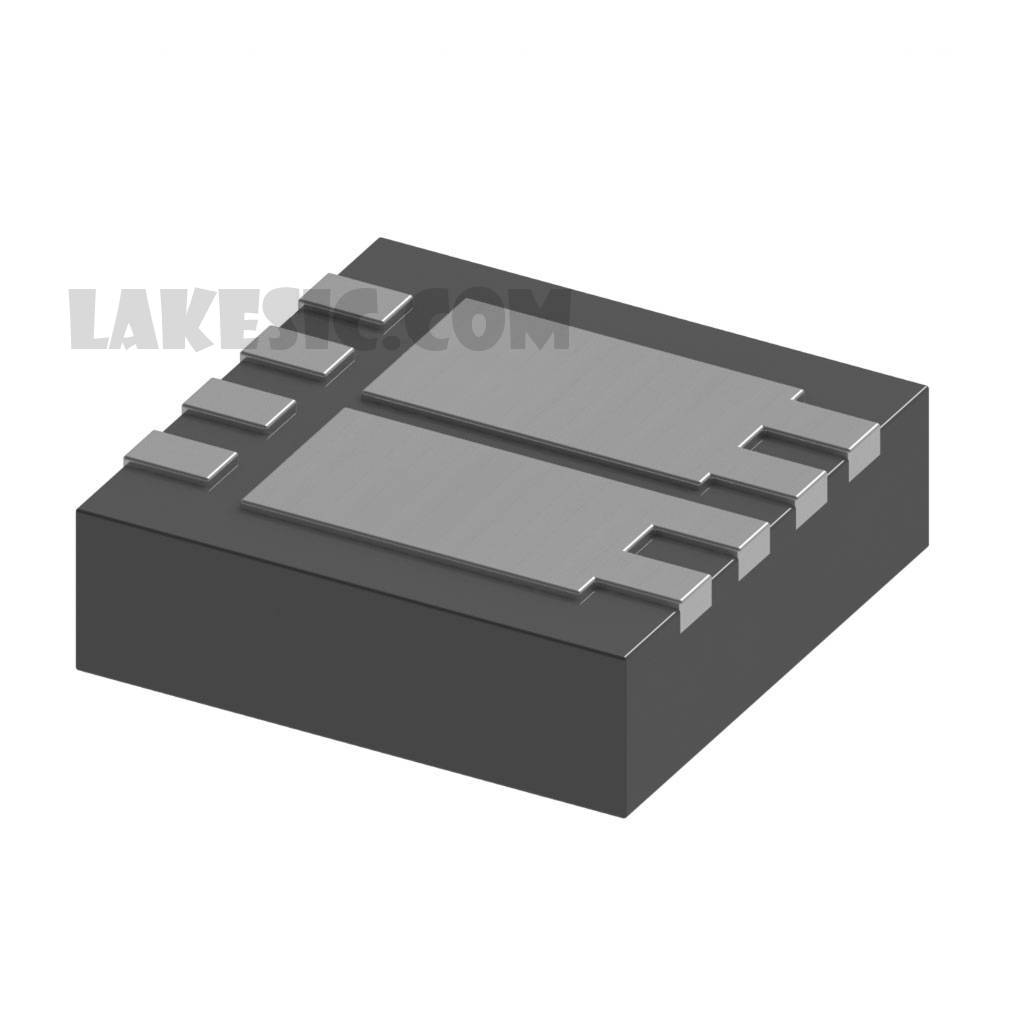

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Common Source 30V 10A (Ta) 15.6W Surface Mount 8-VSON (3.3x3.3)

To learn about the specification of CSD87503Q3ET, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD87503Q3ET with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD87503Q3ET.
We are offering CSD87503Q3ET for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD87503Q3ET - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	CSD87503Q3E Datasheet
Standard Package	250
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual) Common Source
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	10A (Ta)
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	17.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1020pF @ 15V
Power - Max	15.6W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerVDFN
Supplier Device Package	8-VSON (3.3x3.3)
