DMC3021LK4-13

DMC3021LK4-13

Part NumberDMC3021LK4-13

ManufacturerDiodes Incorporated

DescriptionMOSFET N/P-CH 30V TO252-4L

DatasheetDMC3021LK4

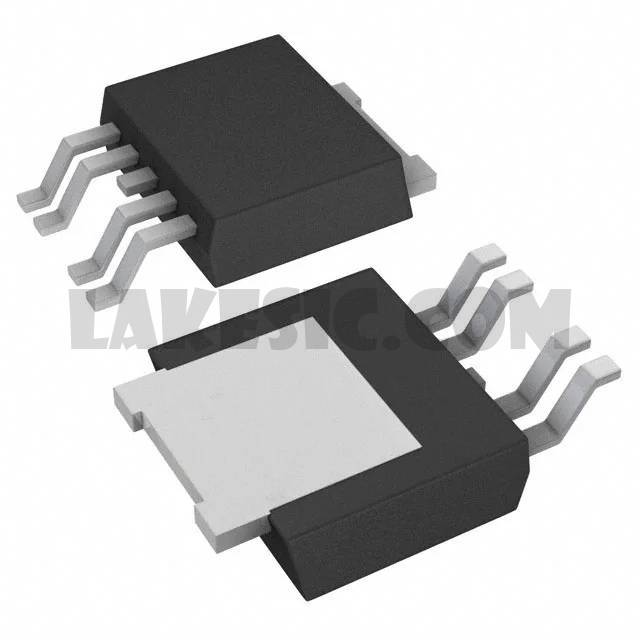

Package / CaseTO-252-5, DPak (4 Leads + Tab), TO-252AD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel, Common Drain 30V 9.4A, 6.8A 2.7W Surface Mount TO-252-4L

To learn about the specification of DMC3021LK4-13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMC3021LK4-13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMC3021LK4-13.
We are offering DMC3021LK4-13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMC3021LK4-13 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	DMC3021LK4
Standard Package	2500
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N and P-Channel, Common Drain
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	9.4A, 6.8A
Rds On (Max) @ Id, Vgs	21mOhm @ 7A, 10V
Vgs(th) (Max) @ Id	2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	17.4nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	751pF @ 10V
Power - Max	2.7W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-252-5, DPak (4 Leads + Tab), TO-252AD
Supplier Device Package	TO-252-4L
Base Part Number	DMC3021
