DMN2016UTS-13

DMN2016UTS-13

Part NumberDMN2016UTS-13

ManufacturerDiodes Incorporated

DescriptionMOSFET 2N-CH 20V 8.58A 8-TSSOP

DatasheetDMN2016UTS

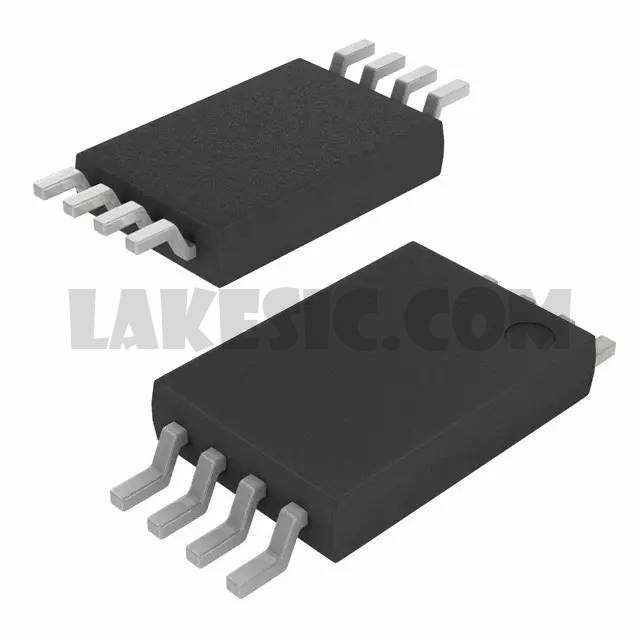

Package / Case8-TSSOP (0.173", 4.40mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Common Drain 20V 8.58A 880mW Surface Mount 8-TSSOP

To learn about the specification of DMN2016UTS-13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMN2016UTS-13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMN2016UTS-13.
We are offering DMN2016UTS-13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMN2016UTS-13 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	DMN2016UTS
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	8.58A
Rds On (Max) @ Id, Vgs	14.5mOhm @ 9.4A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	16.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1495pF @ 10V
Power - Max	880mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	8-TSSOP
Base Part Number	DMN2016U
