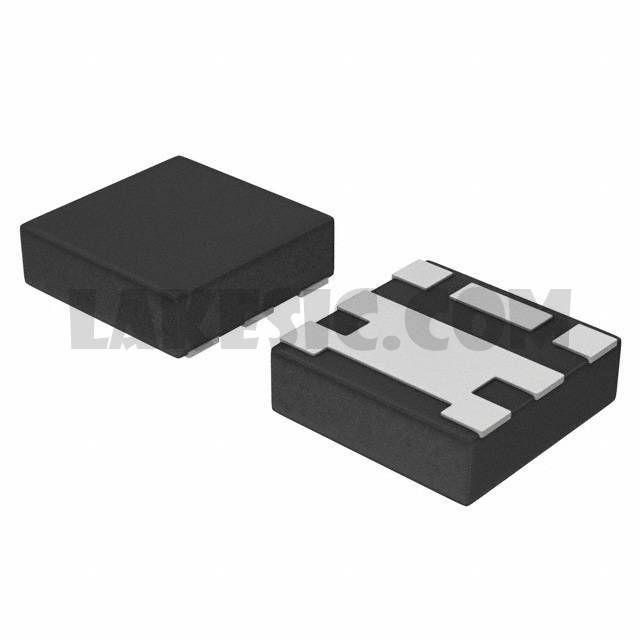

DMN2020UFCL-7

DMN2020UFCL-7

Part NumberDMN2020UFCL-7

ManufacturerDiodes Incorporated

DescriptionMOSFET N-CH 20V 9A 6DFN

DatasheetDMN2020UFCL

Package / Case6-PowerUFDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 20V 9A (Ta) 610mW (Ta) Surface Mount X1-DFN1616-6 (Type E)

To learn about the specification of DMN2020UFCL-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMN2020UFCL-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMN2020UFCL-7.
We are offering DMN2020UFCL-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMN2020UFCL-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMN2020UFCL
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	14mOhm @ 9A, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	21.5nC @ 4.5V
Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	1788pF @ 10V
FET Feature	-
Power Dissipation (Max)	610mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	X1-DFN1616-6 (Type E)
Package / Case	6-PowerUFDFN
Base Part Number	DMN2020
