DMN2400UV-7

DMN2400UV-7

Part NumberDMN2400UV-7

ManufacturerDiodes Incorporated

DescriptionMOSFET 2N-CH 20V 1.33A SOT563

DatasheetDMN2400UV

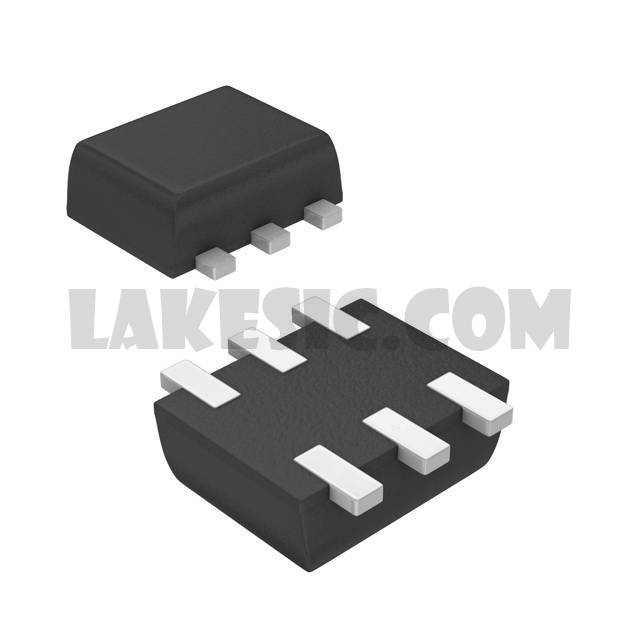

Package / CaseSOT-563, SOT-666

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 20V 1.33A 530mW Surface Mount SOT-563

To learn about the specification of DMN2400UV-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMN2400UV-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMN2400UV-7.
We are offering DMN2400UV-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMN2400UV-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	DMN2400UV
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	1.33A
Rds On (Max) @ Id, Vgs	480mOhm @ 200mA, 5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	36pF @ 16V
Power - Max	530mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666
Supplier Device Package	SOT-563
