DMN2990UFZ-7B

DMN2990UFZ-7B

Part NumberDMN2990UFZ-7B

ManufacturerDiodes Incorporated

DescriptionMOSFET N-CH 20V .25A X2-DFN0606

DatasheetDMN2990UFZ

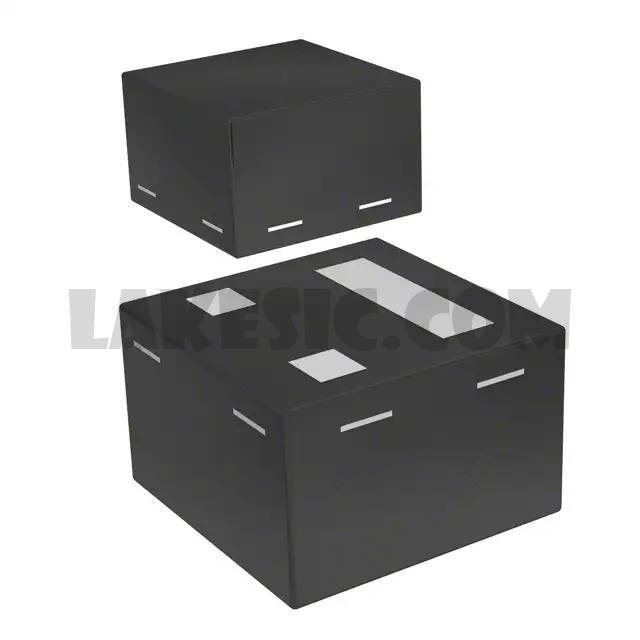

Package / Case3-XFDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 20V 250mA (Ta) 320mW (Ta) Surface Mount X2-DFN0606-3

To learn about the specification of DMN2990UFZ-7B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMN2990UFZ-7B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMN2990UFZ-7B.
We are offering DMN2990UFZ-7B for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMN2990UFZ-7B - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMN2990UFZ
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	250mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.2V, 4.5V
Rds On (Max) @ Id, Vgs	990mOhm @ 100mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.5nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	55.2pF @ 16V
FET Feature	-
Power Dissipation (Max)	320mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	X2-DFN0606-3
Package / Case	3-XFDFN
Base Part Number	DMN2990
