DMP1022UFDF-7

DMP1022UFDF-7

Part NumberDMP1022UFDF-7

ManufacturerDiodes Incorporated

DescriptionMOSFET P-CH 12V 9.5A U-DFN2020-6

DatasheetDMP1022UFDF

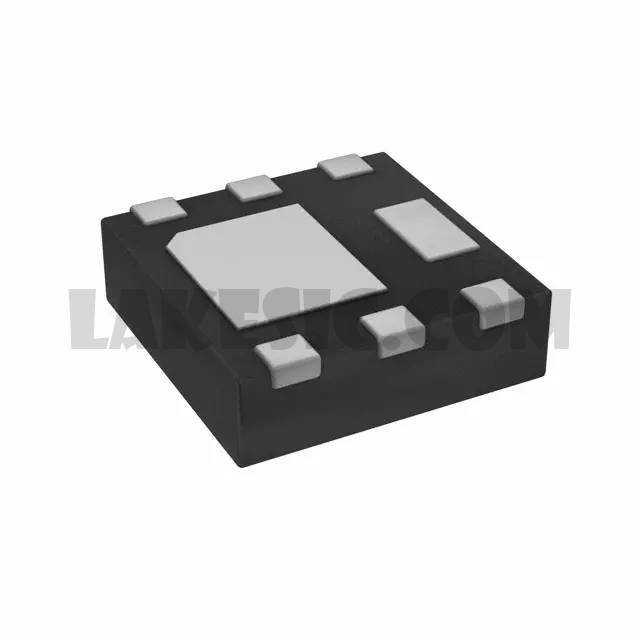

Package / Case6-UDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 12V 9.5A (Ta) 730mW (Ta) Surface Mount U-DFN2020-6 (Type F)

To learn about the specification of DMP1022UFDF-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMP1022UFDF-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMP1022UFDF-7.
We are offering DMP1022UFDF-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMP1022UFDF-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMP1022UFDF
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	9.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	15.3mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id	800mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	48.3nC @ 8V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	2712pF @ 10V
FET Feature	-
Power Dissipation (Max)	730mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	U-DFN2020-6 (Type F)
Package / Case	6-UDFN Exposed Pad
Base Part Number	DMP1022
