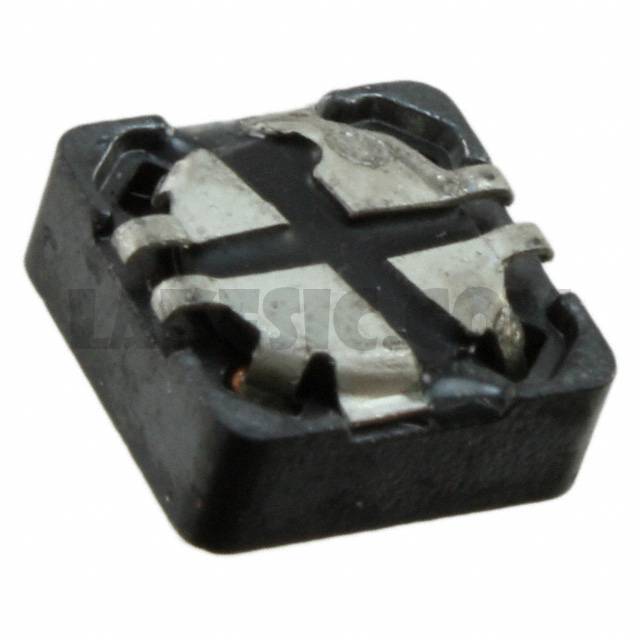

DRQ73-3R3-R

Part NumberDRQ73-3R3-R

ManufacturerEaton - Electronics Division

DescriptionINDUCT ARRAY 2 COIL 3.54UH SMD

DatasheetDRQ Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array 14.16µH Inductance - Connected in Series 3.54µH Inductance - Connected in Parallel 25.9mOhm DC Resistance (DCR) - Parallel 3.31A Nonstandard

To learn about the specification of DRQ73-3R3-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DRQ73-3R3-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DRQ73-3R3-R.
We are offering DRQ73-3R3-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DRQ73-3R3-R - Product Attributes

Categories	Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet	DRQ Series
Standard Package	1350
Manufacturer	Eaton - Electronics Division
Series	DRQ
Packaging	Tape & Reel (TR)
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	3.54µH
Inductance - Connected In Series	14.16µH
Tolerance	±20%
Current Rating - Parallel	3.31A
Current Rating - Series	1.66A
Current Saturation - Parallel	4.22A
Current Saturation - Series	2.11A
DC Resistance (DCR) - Parallel	25.9mOhm
DC Resistance (DCR) - Series	103.5mOhm
Shielding	Shielded
Ratings	-
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.299" L x 0.299" W (7.60mm x 7.60mm)
Height	0.140" (3.55mm)
