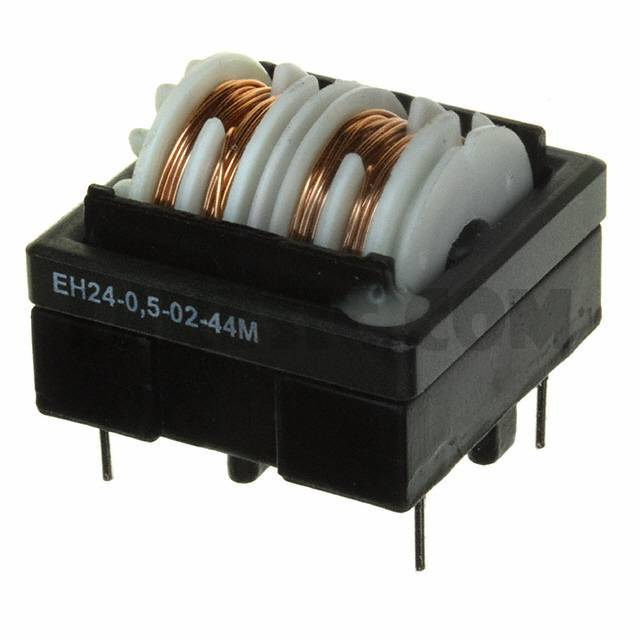

EH24-0.5-02-44M
EH24-0.5-02-44M
Part Number EH24-0.5-02-44M Description CMC 44MH 500MA 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 44mH @ 400Hz 2 Line Common Mode Choke Through Hole 500mA DCR 1.25Ohm (Typ)
To learn about the specification of EH24-0.5-02-44M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EH24-0.5-02-44M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EH24-0.5-02-44M.
We are offering EH24-0.5-02-44M for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
EH24-0.5-02-44M - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet EV,EH Series Standard Package 500 Manufacturer Schaffner EMC Inc. Series EH Packaging Tube Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 44mH @ 400Hz Current Rating (Max) 500mA DC Resistance (DCR) (Max) 1.25Ohm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -25°C ~ 100°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 0.945" L x 0.945" W (24.00mm x 24.00mm) Height (Max) 0.827" (21.00mm) Package / Case Horizontal, 4 PC Pin
