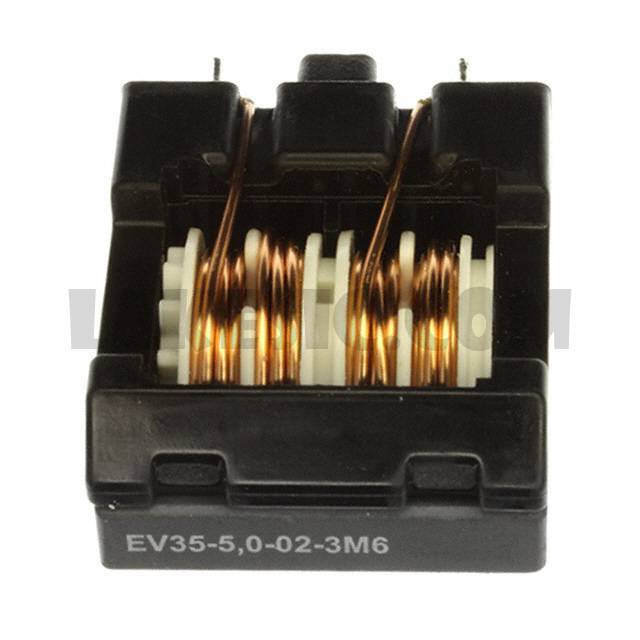

EV35-5.0-02-3M6
EV35-5.0-02-3M6
Part Number EV35-5.0-02-3M6 Description CMC 3.6MH 5A 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 3.6mH @ 400Hz 2 Line Common Mode Choke Through Hole 5A DCR 33mOhm (Typ)
To learn about the specification of EV35-5.0-02-3M6, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EV35-5.0-02-3M6 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EV35-5.0-02-3M6.
We are offering EV35-5.0-02-3M6 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
EV35-5.0-02-3M6 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet EV,EH Series Standard Package 250 Manufacturer Schaffner EMC Inc. Series EV Packaging Bulk Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 3.6mH @ 400Hz Current Rating (Max) 5A DC Resistance (DCR) (Max) 33mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -25°C ~ 100°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.417" L x 0.965" W (36.00mm x 24.50mm) Height (Max) 1.681" (42.70mm) Package / Case Vertical, 4 PC Pin
