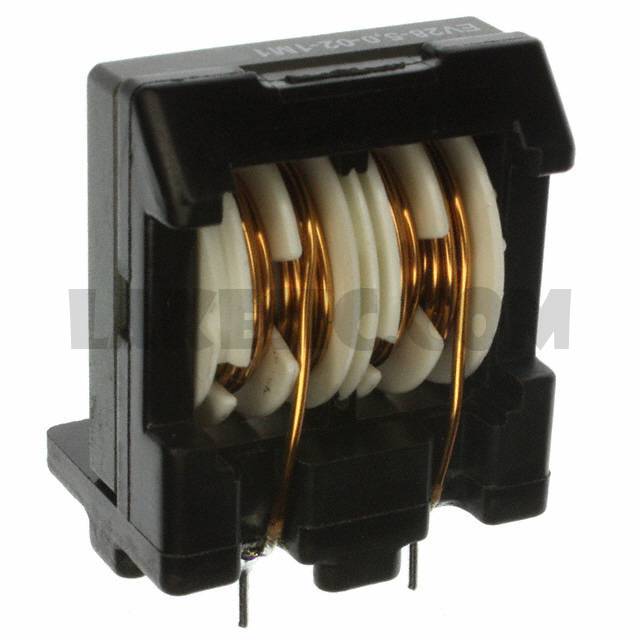

EV28-5.0-02-1M1


EV28-5.0-02-1M1

Part NumberEV28-5.0-02-1M1

Manufacturer

Description

Datasheet

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

EV28-5.0-02-1M1 - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package500
ManufacturerSchaffner EMC Inc.
SeriesEV
PackagingTube
Part StatusActive
Filter TypePower Line
Number of Lines2
Inductance @ Frequency1.1mH @ 400Hz
Current Rating (Max)5A
DC Resistance (DCR) (Max)27mOhm (Typ)
Voltage Rating - DC-
Voltage Rating - AC250V
Operating Temperature-25°C ~ 100°C
Ratings-
Approvals-
Features-
Mounting TypeThrough Hole
Size / Dimension1.150" L x 0.827" W (29.20mm x 21.00mm)
Height (Max)1.406" (35.70mm)
Package / CaseVertical, 4 PC Pin
