EV28-2.0-02-11M
EV28-2.0-02-11M

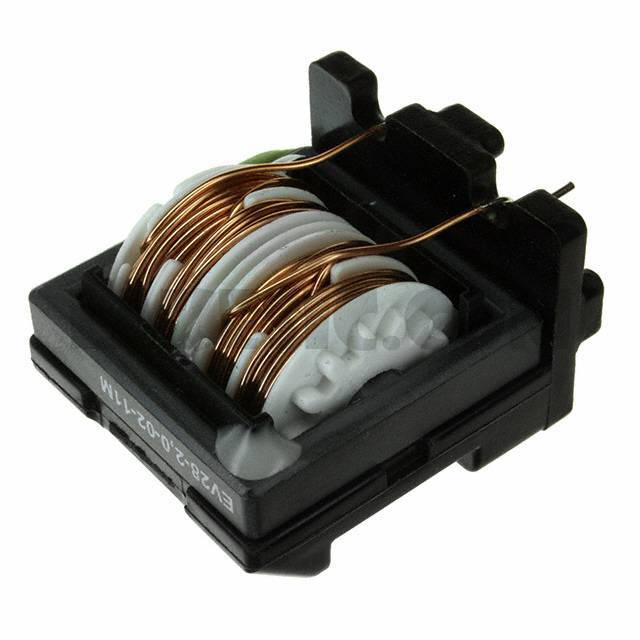

Part Number EV28-2.0-02-11M Description COMMON MODE CHOKE 11MH 2A 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 11mH @ 400Hz 2 Line Common Mode Choke Through Hole 2A DCR 162mOhm (Typ)
To learn about the specification of EV28-2.0-02-11M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EV28-2.0-02-11M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EV28-2.0-02-11M.
We are offering EV28-2.0-02-11M for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
EV28-2.0-02-11M - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet EV,EH Series Standard Package 500 Manufacturer Schaffner EMC Inc. Series EV Packaging Tray Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 11mH @ 400Hz Current Rating (Max) 2A DC Resistance (DCR) (Max) 162mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -25°C ~ 100°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.150" L x 0.827" W (29.20mm x 21.00mm) Height (Max) 1.406" (35.70mm) Package / Case Vertical, 4 PC Pin
