EH35-1.0-02-90M
EH35-1.0-02-90M

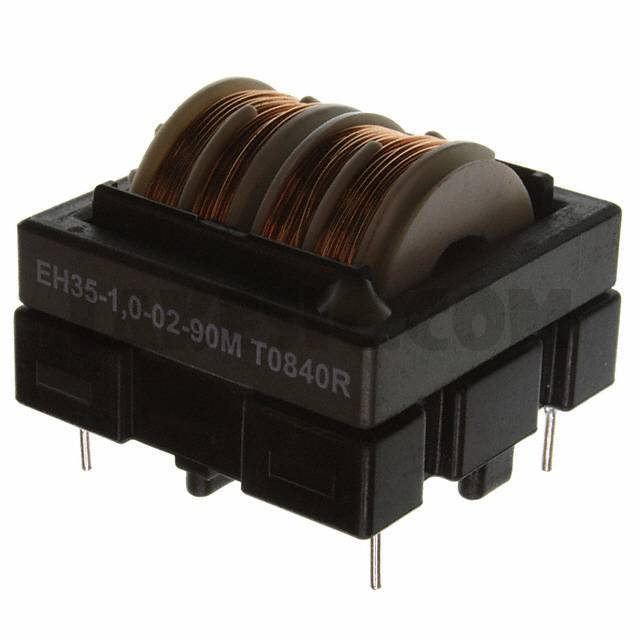

Part Number EH35-1.0-02-90M Description COMMON MODE CHOKE 90MH 1A 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 90mH @ 400Hz 2 Line Common Mode Choke Through Hole 1A DCR 628mOhm (Typ)
To learn about the specification of EH35-1.0-02-90M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EH35-1.0-02-90M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EH35-1.0-02-90M.
We are offering EH35-1.0-02-90M for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
EH35-1.0-02-90M - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet EV,EH Series Standard Package 250 Manufacturer Schaffner EMC Inc. Series EH Packaging Tube Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 90mH @ 400Hz Current Rating (Max) 1A DC Resistance (DCR) (Max) 628mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -25°C ~ 100°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.417" L x 1.417" W (36.00mm x 36.00mm) Height (Max) 1.130" (28.70mm) Package / Case Horizontal, 4 PC Pin
EH35-1.0-02-90M - Related ProductsMore >>
EH28-1.5-02-27M-X Schaffner EMC Inc., 27mH @ 400Hz 2 Line Common Mode Choke Through Hole 1.5A DCR 282mOhm, EH
View
EV20-1.2-02-3M3 Schaffner EMC Inc., 3.3mH @ 400Hz 2 Line Common Mode Choke Through Hole 1.2A DCR 127mOhm (Typ), EV
View
EH35-2.0-02-20M Schaffner EMC Inc., 20mH @ 10kHz 2 Line Common Mode Choke Through Hole 2A DCR 150mOhm (Typ), EH
View
EH28-1.0-02-36M Schaffner EMC Inc., 36mH @ 400Hz 2 Line Common Mode Choke Through Hole 1A DCR 591mOhm (Typ), EH
View
EV28-5.0-02-1M1 Schaffner EMC Inc., 1.1mH @ 400Hz 2 Line Common Mode Choke Through Hole 5A DCR 27mOhm (Typ), EV
View
EH28-2.0-02-15M-X Schaffner EMC Inc., 15mH @ 400Hz 2 Line Common Mode Choke Through Hole 2A DCR 196mOhm, EH
View
EV20-0.3-02-33M Schaffner EMC Inc., 33mH @ 10kHz 2 Line Common Mode Choke Through Hole 300mA DCR 1.78Ohm (Typ), EV
View
EH28-5.0-02-1M1 Schaffner EMC Inc., 1.1mH @ 400Hz 2 Line Common Mode Choke Through Hole 5A DCR 27mOhm (Typ), EH
View
EH24-2.0-02-2M5 Schaffner EMC Inc., 2.5mH @ 400Hz 2 Line Common Mode Choke Through Hole 2A DCR 62mOhm (Typ), EH
View
EH24-4.0-02-0M5 Schaffner EMC Inc., 500µH @ 10kHz 2 Line Common Mode Choke Through Hole 4A DCR 16mOhm (Typ), EH
View
EH28-4.0-02-2M3 Schaffner EMC Inc., 2.3mH @ 10kHz 2 Line Common Mode Choke Through Hole 4A DCR 40mOhm (Typ), EH
View
EH35-4.0-02-5M0 Schaffner EMC Inc., 5mH @ 400Hz 2 Line Common Mode Choke Through Hole 4A DCR 53mOhm (Typ), EH
View
