EH24-3.0-02-1M2
EH24-3.0-02-1M2

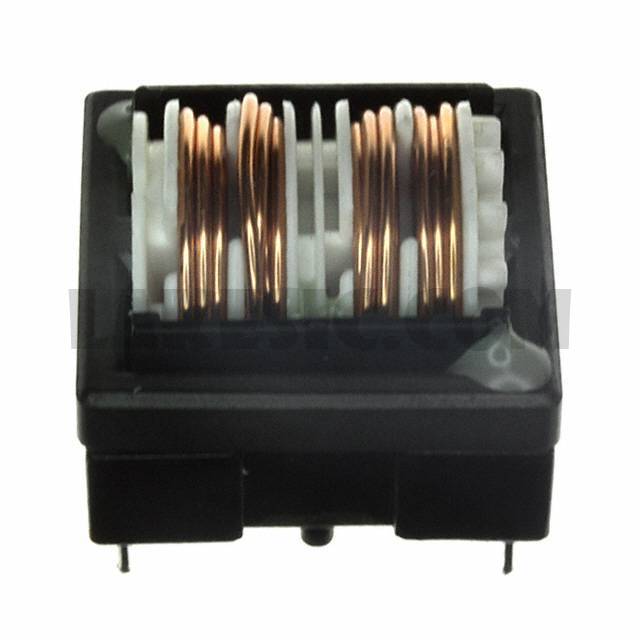

Part Number EH24-3.0-02-1M2
Description CMC 1.2MH 3A 2LN TH
Package / Case Horizontal, 4 PC Pin
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 1.2mH @ 400Hz 2 Line Common Mode Choke Through Hole 3A DCR 29mOhm (Typ)
To learn about the specification of EH24-3.0-02-1M2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EH24-3.0-02-1M2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EH24-3.0-02-1M2.
We are offering EH24-3.0-02-1M2 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
EH24-3.0-02-1M2 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet EV,EH Series
Standard Package 500
Manufacturer Schaffner EMC Inc.
Series EH
Packaging Tray
Part Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.2mH @ 400Hz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 29mOhm (Typ)
Voltage Rating - DC -
Voltage Rating - AC 250V
Operating Temperature -25°C ~ 100°C
Ratings -
Approvals -
Features -
Mounting Type Through Hole
Size / Dimension 0.945" L x 0.945" W (24.00mm x 24.00mm)
Height (Max) 0.827" (21.00mm)
Package / Case Horizontal, 4 PC Pin
