EH24-2.0-02-2M5
EH24-2.0-02-2M5

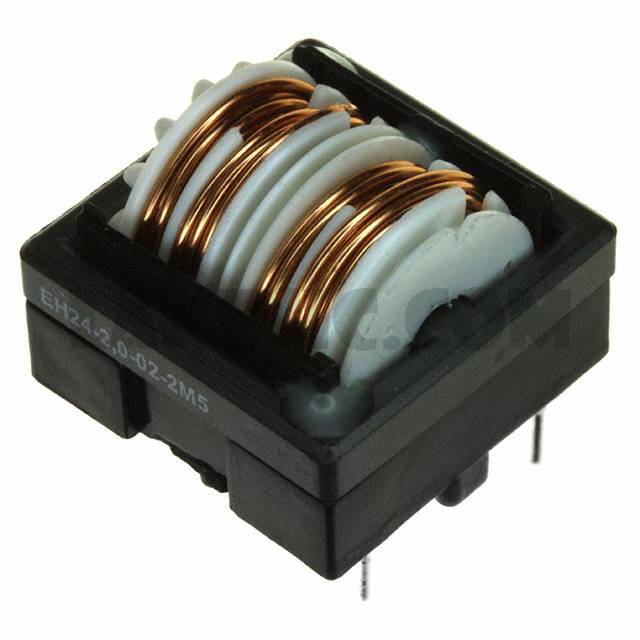

Part Number EH24-2.0-02-2M5 Description CMC 2.5MH 2A 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2.5mH @ 400Hz 2 Line Common Mode Choke Through Hole 2A DCR 62mOhm (Typ)
To learn about the specification of EH24-2.0-02-2M5, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EH24-2.0-02-2M5 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EH24-2.0-02-2M5.
We are offering EH24-2.0-02-2M5 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
EH24-2.0-02-2M5 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet EV,EH Series Standard Package 500 Manufacturer Schaffner EMC Inc. Series EH Packaging Tube Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 2.5mH @ 400Hz Current Rating (Max) 2A DC Resistance (DCR) (Max) 62mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -25°C ~ 100°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 0.945" L x 0.945" W (24.00mm x 24.00mm) Height (Max) 0.827" (21.00mm) Package / Case Horizontal, 4 PC Pin
EH24-2.0-02-2M5 - Related ProductsMore >>
EH20-1.5-02-1M8 Schaffner EMC Inc., 1.8mH @ 400Hz 2 Line Common Mode Choke Through Hole 1.5A DCR 72mOhm (Typ), EH
View
EH28-1.0-02-36M Schaffner EMC Inc., 36mH @ 400Hz 2 Line Common Mode Choke Through Hole 1A DCR 591mOhm (Typ), EH
View
EV24-1.0-02-10M Schaffner EMC Inc., 10mH @ 400Hz 2 Line Common Mode Choke Through Hole 1A DCR 244mOhm (Typ), EV
View
EH24-1.5-02-4M5 Schaffner EMC Inc., 4.5mH @ 400Hz 2 Line Common Mode Choke Through Hole 1.5A DCR 116mOhm (Typ), EH
View
EV28-1.5-02-27M-X Schaffner EMC Inc., 27mH @ 10kHz 2 Line Common Mode Choke Through Hole 1.5A DCR 287mOhm, EV
View
EV35-3.0-02-10M Schaffner EMC Inc., 10mH @ 400Hz 2 Line Common Mode Choke Through Hole 3A DCR 72mOhm (Typ), EV
View
EH35-5.0-02-3M6 Schaffner EMC Inc., 3.6mH @ 400Hz 2 Line Common Mode Choke Through Hole 5A DCR 33mOhm (Typ), EH
View
EH20-0.8-02-5M6 Schaffner EMC Inc., 5.6mH @ 400Hz 2 Line Common Mode Choke Through Hole 800mA DCR 245mOhm (Typ), EH
View
EH20-1.0-02-3M9 Schaffner EMC Inc., 3.9mH @ 10kHz 2 Line Common Mode Choke Through Hole 1A DCR 168mOhm (Typ), EH
View
EV24-0.8-02-18M Schaffner EMC Inc., 18mH @ 10kHz 2 Line Common Mode Choke Through Hole 800mA DCR 438mOhm (Typ), EV
View
EH28-3.0-02-9M0-X Schaffner EMC Inc., 9mH @ 400Hz 2 Line Common Mode Choke Through Hole 3A DCR 115mOhm, EH
View
EH28-3.0-02-5M0 Schaffner EMC Inc., 5mH @ 400Hz 2 Line Common Mode Choke Through Hole 3A DCR 79mOhm (Typ), EH
View
