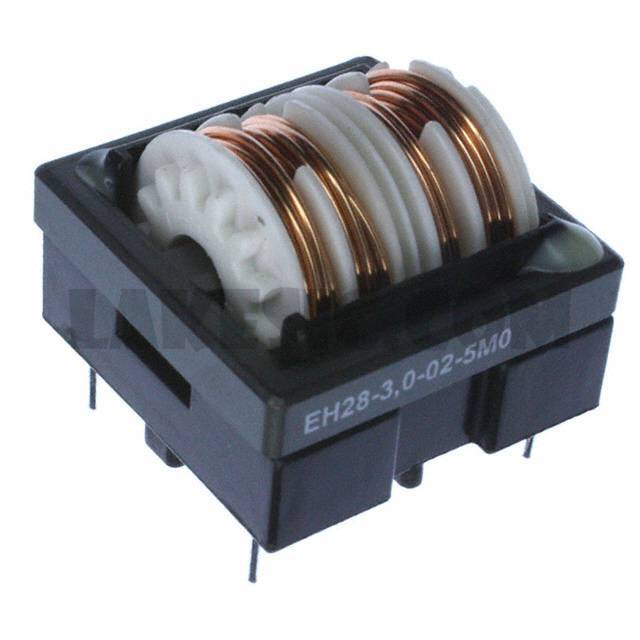

EH28-3.0-02-5M0
EH28-3.0-02-5M0
Part Number EH28-3.0-02-5M0 Description COMMON MODE CHOKE 5MH 3A 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 5mH @ 400Hz 2 Line Common Mode Choke Through Hole 3A DCR 79mOhm (Typ)
To learn about the specification of EH28-3.0-02-5M0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EH28-3.0-02-5M0 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EH28-3.0-02-5M0.
We are offering EH28-3.0-02-5M0 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
EH28-3.0-02-5M0 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet EV,EH Series Standard Package 500 Manufacturer Schaffner EMC Inc. Series EH Packaging Tube Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 5mH @ 400Hz Current Rating (Max) 3A DC Resistance (DCR) (Max) 79mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -25°C ~ 100°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.102" L x 1.102" W (28.00mm x 28.00mm) Height (Max) 0.941" (23.90mm) Package / Case Horizontal, 4 PC Pin
EH28-3.0-02-5M0 - Related ProductsMore >>
EH24-1.0-02-10M Schaffner EMC Inc., 10mH @ 10kHz 2 Line Common Mode Choke Through Hole 1A DCR 244mOhm (Typ), EH
View
EH24-0.5-02-44M Schaffner EMC Inc., 44mH @ 400Hz 2 Line Common Mode Choke Through Hole 500mA DCR 1.25Ohm (Typ), EH
View
EV28-1.5-02-20M Schaffner EMC Inc., 20mH @ 400Hz 2 Line Common Mode Choke Through Hole 1.5A DCR 282mOhm (Typ), EV
View
EV20-1.2-02-3M3 Schaffner EMC Inc., 3.3mH @ 400Hz 2 Line Common Mode Choke Through Hole 1.2A DCR 127mOhm (Typ), EV
View
EH35-1.0-02-90M Schaffner EMC Inc., 90mH @ 400Hz 2 Line Common Mode Choke Through Hole 1A DCR 628mOhm (Typ), EH
View
EV35-3.0-02-10M Schaffner EMC Inc., 10mH @ 400Hz 2 Line Common Mode Choke Through Hole 3A DCR 72mOhm (Typ), EV
View
EH24-0.8-02-18M Schaffner EMC Inc., 18mH @ 400Hz 2 Line Common Mode Choke Through Hole 800mA DCR 438mOhm (Typ), EH
View
EV35-2.0-02-20M Schaffner EMC Inc., 20mH @ 400Hz 2 Line Common Mode Choke Through Hole 2A DCR 150mOhm (Typ), EV
View
EV28-2.0-02-11M Schaffner EMC Inc., 11mH @ 400Hz 2 Line Common Mode Choke Through Hole 2A DCR 162mOhm (Typ), EV
View
EH28-1.5-02-20M Schaffner EMC Inc., 20mH @ 400Hz 2 Line Common Mode Choke Through Hole 1.5A DCR 282mOhm (Typ), EH
View
EV24-2.0-02-2M5 Schaffner EMC Inc., 2.5mH @ 10kHz 2 Line Common Mode Choke Through Hole 2A DCR 62mOhm (Typ), EV
View
EV20-1.5-02-1M8 Schaffner EMC Inc., 1.8mH @ 10kHz 2 Line Common Mode Choke Through Hole 1.5A DCR 72mOhm (Typ), EV
View
EH28-3.0-02-5M0 - Tags
