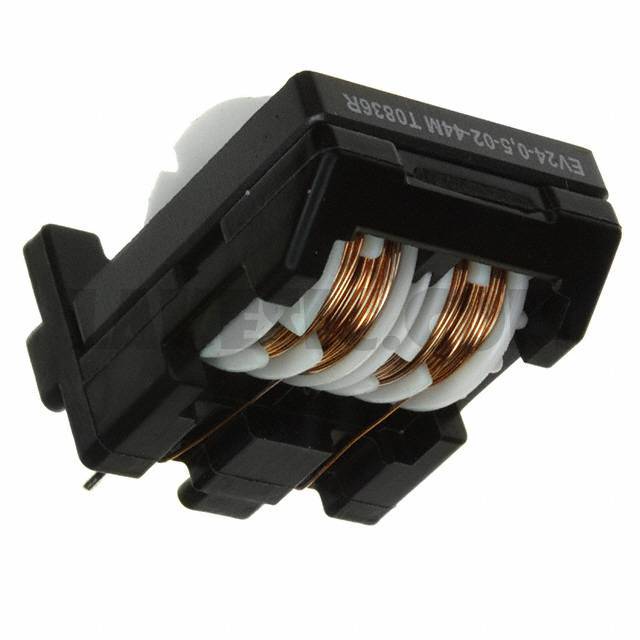

EV24-0.5-02-44M
EV24-0.5-02-44M
Part Number EV24-0.5-02-44M Description CMC 44MH 500MA 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 44mH @ 400Hz 2 Line Common Mode Choke Through Hole 500mA DCR 1.25Ohm (Typ)
To learn about the specification of EV24-0.5-02-44M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EV24-0.5-02-44M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EV24-0.5-02-44M.
We are offering EV24-0.5-02-44M for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
EV24-0.5-02-44M - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet EV,EH Series Standard Package 500 Manufacturer Schaffner EMC Inc. Series EV Packaging Tube Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 44mH @ 400Hz Current Rating (Max) 500mA DC Resistance (DCR) (Max) 1.25Ohm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -25°C ~ 100°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 0.969" L x 0.685" W (24.60mm x 17.40mm) Height (Max) 1.185" (30.10mm) Package / Case Vertical, 4 PC Pin
EV24-0.5-02-44M - Related ProductsMore >>
EH24-0.8-02-18M Schaffner EMC Inc., 18mH @ 400Hz 2 Line Common Mode Choke Through Hole 800mA DCR 438mOhm (Typ), EH
View
EV28-5.0-02-1M1 Schaffner EMC Inc., 1.1mH @ 400Hz 2 Line Common Mode Choke Through Hole 5A DCR 27mOhm (Typ), EV
View
EH20-1.0-02-3M9 Schaffner EMC Inc., 3.9mH @ 10kHz 2 Line Common Mode Choke Through Hole 1A DCR 168mOhm (Typ), EH
View
EV20-0.8-02-5M6 Schaffner EMC Inc., 5.6mH @ 400Hz 2 Line Common Mode Choke Through Hole 800mA DCR 245mOhm (Typ), EV
View
EV35-1.0-02-90M Schaffner EMC Inc., 90mH @ 400Hz 2 Line Common Mode Choke Through Hole 1A DCR 628mOhm (Typ), EV
View
EV20-2.0-02-0M8 Schaffner EMC Inc., 820µH @ 400Hz 2 Line Common Mode Choke Through Hole 2A DCR 38mOhm (Typ), EV
View
EH28-2.0-02-15M-X Schaffner EMC Inc., 15mH @ 400Hz 2 Line Common Mode Choke Through Hole 2A DCR 196mOhm, EH
View
EV35-3.0-02-10M Schaffner EMC Inc., 10mH @ 400Hz 2 Line Common Mode Choke Through Hole 3A DCR 72mOhm (Typ), EV
View
EV28-1.0-02-36M Schaffner EMC Inc., 36mH @ 400Hz 2 Line Common Mode Choke Through Hole 1A DCR 591mOhm (Typ), EV
View
EH20-1.2-02-3M3 Schaffner EMC Inc., 3.3mH @ 400Hz 2 Line Common Mode Choke Through Hole 1.2A DCR 127mOhm (Typ), EH
View
EH28-1.5-02-27M-X Schaffner EMC Inc., 27mH @ 400Hz 2 Line Common Mode Choke Through Hole 1.5A DCR 282mOhm, EH
View
EH20-0.5-02-18M Schaffner EMC Inc., 18mH @ 400Hz 2 Line Common Mode Choke Through Hole 500mA DCR 725mOhm (Typ), EH
View
