EV24-0.8-02-18M
EV24-0.8-02-18M

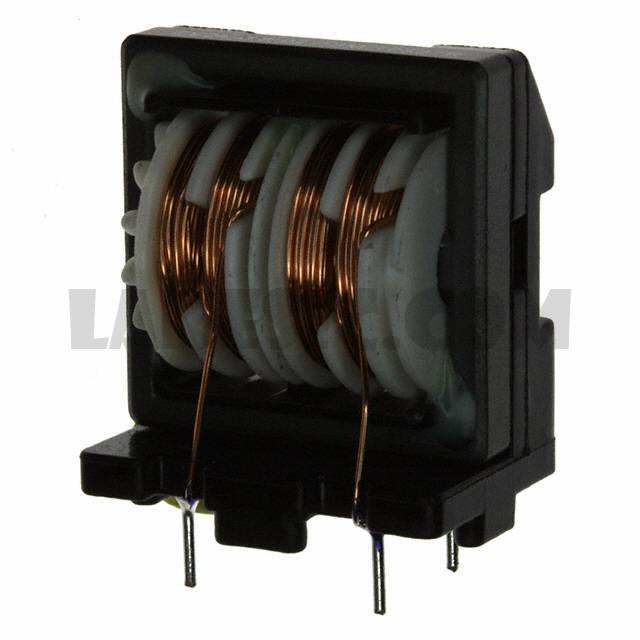

Part Number EV24-0.8-02-18M Description CMC 18MH 800MA 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 18mH @ 10kHz 2 Line Common Mode Choke Through Hole 800mA DCR 438mOhm (Typ)
To learn about the specification of EV24-0.8-02-18M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EV24-0.8-02-18M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EV24-0.8-02-18M.
We are offering EV24-0.8-02-18M for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
EV24-0.8-02-18M - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet EV,EH Series Standard Package 500 Manufacturer Schaffner EMC Inc. Series EV Packaging Tube Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 18mH @ 10kHz Current Rating (Max) 800mA DC Resistance (DCR) (Max) 438mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -25°C ~ 100°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 0.969" L x 0.685" W (24.60mm x 17.40mm) Height (Max) 1.185" (30.10mm) Package / Case Vertical, 4 PC Pin
