EH20-0.3-02-33M
EH20-0.3-02-33M

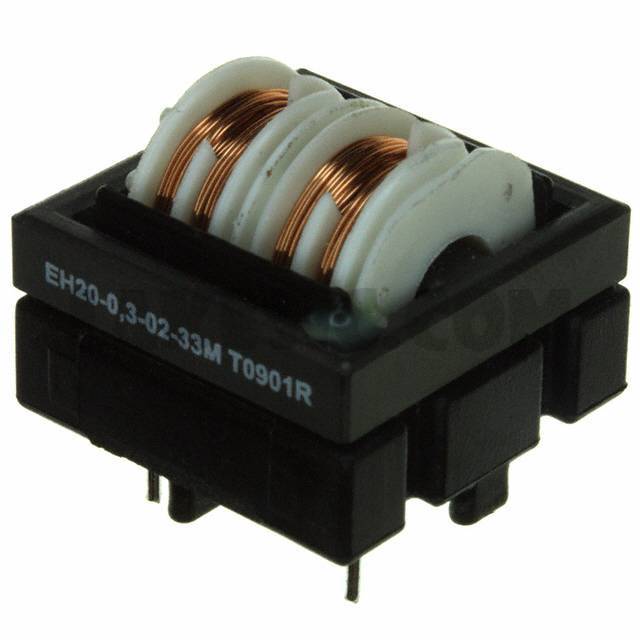

Part Number EH20-0.3-02-33M Description CMC 33MH 300MA 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 33mH @ 400Hz 2 Line Common Mode Choke Through Hole 300mA DCR 1.78Ohm (Typ)
To learn about the specification of EH20-0.3-02-33M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EH20-0.3-02-33M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EH20-0.3-02-33M.
We are offering EH20-0.3-02-33M for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
EH20-0.3-02-33M - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet EV,EH Series Standard Package 500 Manufacturer Schaffner EMC Inc. Series EH Packaging Tube Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 33mH @ 400Hz Current Rating (Max) 300mA DC Resistance (DCR) (Max) 1.78Ohm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -25°C ~ 100°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 0.827" L x 0.827" W (21.00mm x 21.00mm) Height (Max) 0.740" (18.80mm) Package / Case Horizontal, 4 PC Pin
