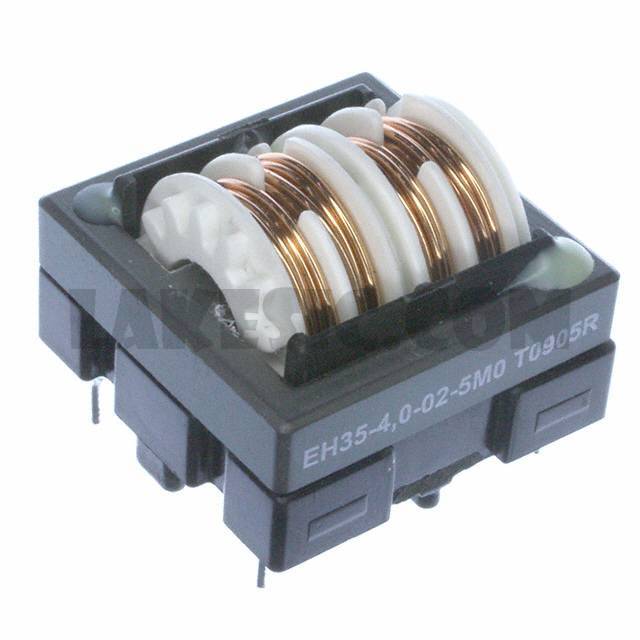

EH35-4.0-02-5M0
EH35-4.0-02-5M0
Part Number EH35-4.0-02-5M0 Description COMMON MODE CHOKE 5MH 4A 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 5mH @ 400Hz 2 Line Common Mode Choke Through Hole 4A DCR 53mOhm (Typ)
To learn about the specification of EH35-4.0-02-5M0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EH35-4.0-02-5M0 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EH35-4.0-02-5M0.
We are offering EH35-4.0-02-5M0 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
EH35-4.0-02-5M0 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet EV,EH Series Standard Package 250 Manufacturer Schaffner EMC Inc. Series EH Packaging Tube Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 5mH @ 400Hz Current Rating (Max) 4A DC Resistance (DCR) (Max) 53mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -25°C ~ 100°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.417" L x 1.417" W (36.00mm x 36.00mm) Height (Max) 1.130" (28.70mm) Package / Case Horizontal, 4 PC Pin
