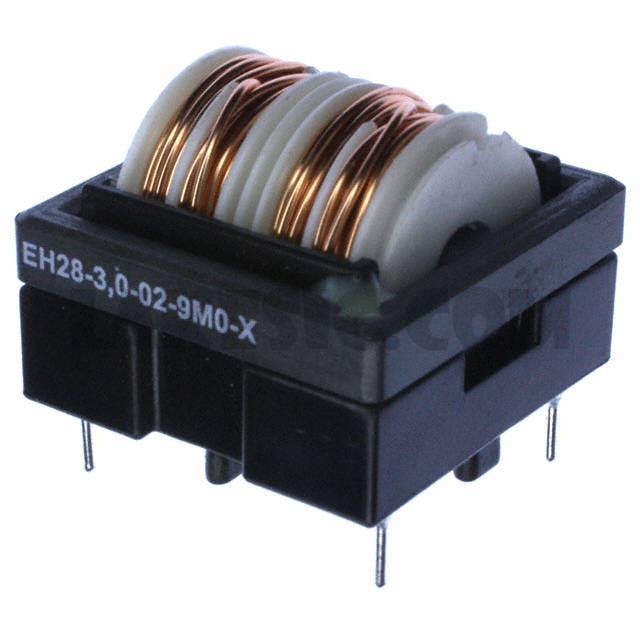

EH28-3.0-02-9M0-X
EH28-3.0-02-9M0-X
Part Number EH28-3.0-02-9M0-X Description COMMON MODE CHOKE 9MH 3A 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 9mH @ 400Hz 2 Line Common Mode Choke Through Hole 3A DCR 115mOhm
To learn about the specification of EH28-3.0-02-9M0-X, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EH28-3.0-02-9M0-X with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EH28-3.0-02-9M0-X.
We are offering EH28-3.0-02-9M0-X for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
EH28-3.0-02-9M0-X - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet EH28-3.0-02-9M0-X Standard Package 500 Manufacturer Schaffner EMC Inc. Series EH Packaging Tube Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 9mH @ 400Hz Current Rating (Max) 3A DC Resistance (DCR) (Max) 115mOhm Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -25°C ~ 100°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.102" L x 1.102" W (28.00mm x 28.00mm) Height (Max) 0.941" (23.90mm) Package / Case Horizontal, 4 PC Pin
