Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	EPC2045 Datasheet
Standard Package	1
Manufacturer	EPC
Series	eGaN®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	16A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	7mOhm @ 16A, 5V
Vgs(th) (Max) @ Id	2.5V @ 5mA
Gate Charge (Qg) (Max) @ Vgs	6.5nC @ 5V
Vgs (Max)	+6V, -4V
Input Capacitance (Ciss) (Max) @ Vds	685pF @ 50V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Die
Package / Case	Die

EPC2203	EPC, N-Channel 80V 1.7A Surface Mount Die, Automotive, AEC-Q101, eGaN®	View
EPC2014C	EPC, N-Channel 40V 10A (Ta) Surface Mount Die Outline (5-Solder Bar), eGaN®	View
TP90H180PS	Transphorm, N-Channel 900V 15A (Tc) 78W (Tc) Through Hole TO-220AB,	View
EPC2036	EPC, N-Channel 100V 1.7A (Ta) Surface Mount Die, eGaN®	View
EPC2051	EPC, N-Channel 100V 1.7A Surface Mount Die, eGaN®	View
EPC2030ENGRT	EPC, N-Channel 40V 31A (Ta) Surface Mount Die, eGaN®	View
EPC2049ENGRT	EPC, N-Channel 40V 16A (Ta) Surface Mount Die, eGaN®	View
TP65H050WS	Transphorm, N-Channel 650V 34A (Tc) 119W (Tc) Through Hole TO-247-3,	View
EPC2031	EPC, N-Channel 60V 31A (Ta) Surface Mount Die, eGaN®	View
EPC2045	EPC, N-Channel 100V 16A (Ta) Surface Mount Die, eGaN®	View
EPC2212	EPC, N-Channel 100V 18A (Ta) Surface Mount Die, eGaN®	View
EPC2001C	EPC, N-Channel 100V 36A (Ta) Surface Mount Die Outline (11-Solder Bar), eGaN®	View

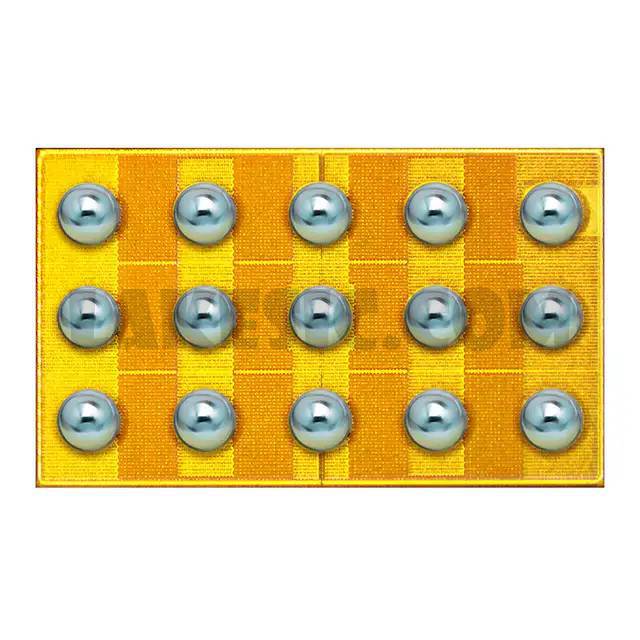

EPC2045
